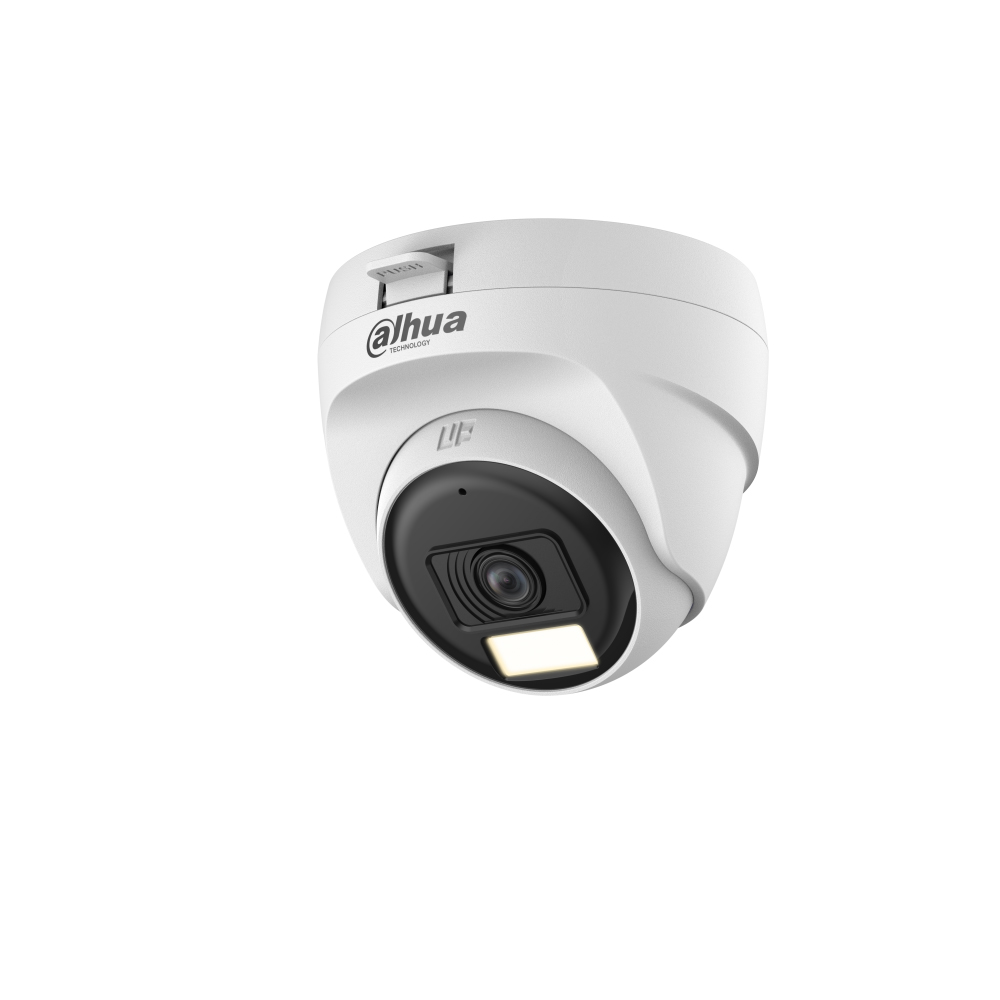

HAC-T1A21P-U-IL-A

2 Mpx CMOS
– Objectif : Fixe 2.8mm
– ID 25m – Built-in Mic

Camera
Image Sensor 2 MP CMOS
Max. Resolution 1920 (H) × 1080 (V)
Scanning System Progressive
Electronic Shutter Speed PAL: 1/25 s-1/100,000 s; NTSC: 1/30 s-1/100,000 s
Min. Illumination 0.02 [email protected] (Color, 30 IRE); 0.002 [email protected] (B/W, 30 IRE); 0 lux (Illuminator on)
S/N Ratio >65 dB
Illumination Distance IR: 25 m (82.02 ft); Warm light: 20 m (65.62 ft)
Illuminator On/Off Control Auto;Manual
Illuminator Number 2 (Warm light);2 (IR light)
Angle Adjustment Pan: 0°-360° Tilt: 0°-78° Rotation: 0°-360°
Lens
Lens Type Fixed-focal
Lens Mount M12
Focal Length 2.8 mm;3.6 mm
Max. Aperture F2.0
Field of View 2.8 mm: H: 100°; V: 54°; D: 117° 3.6 mm: H: 80°; V: 43°; D: 94°
Iris Control Fixed
Close Focus Distance 2.8 mm: 0.5 m (1.64 ft) 3.6 mm: 0.8 m (2.62 ft)
DORI Distance Lens Detect Observe Recognize Identify
2.8 mm 44.7 m (146.65 ft) 17.9 m (58.73 ft) 8.9 m (29.20 ft) 4.5 m (14.76 ft)
3.6 mm 55.0 m (180.45 ft) 22.0 m (72.18 ft) 11.0 m (36.09 ft) 5.5 m (18.04 ft)
Video
Video Frame Rate CVI: PAL: 1080p@25 fps NTSC: 1080p@30 fps AHD: PAL: 1080p@25 fps NTSC: 1080p@30 fps TVI: PAL: 1080p@25 fps NTSC: 1080p@30 fps CVBS: PAL: 960H NTSC: 960H
Resolution 1080p (1920 × 1080); 960H (960 × 576/960 × 480)
Day/Night Auto(ICR)/Color/B/W
BLC BLC; HLC; DWDR
WDR DWDR
White Balance Auto;Area white balance
Gain Control Auto;Manual
Noise Reduction 2D NR
Illumination Mode Smart IR&WL; WL Mode; IR Mode
Mirror Yes
Privacy Masking Off/On (8 areas, rectangle)
Certification
Certifications CE-LVD: EN 62368-1; CE-EMC: EN 55032; EN 55035
Port
Video Output Video output choices of CVI/TVI/AHD/CVBS by one BNC port
Audio Input One channel built-in Mic
Power
Power Supply 12 VDC ± 30%
Power Consumption Max 2.1 W (12 VDC, LED on)
Environment
Operating Temperature -40 °C to +60 °C (-40 °F to +140 °F)
Operating Humidity <95% (RH), non-condensing
Storage Temperature -40 °C to +60 °C (-40 °F to +140 °F)
Storage Humidity <95% (RH), non-condensing
Anti-corrosion Level Basic Protection
Structure
Casing Material Plastic
Product Dimensions Φ85.0 mm × 77.1 mm (Φ3.35″ × 3.04″)
Net Weight 0.11 kg (0.24 lb)
Gross Weight 0.12 kg (0.26 lb)
Installation Wall mount; ceiling mount
