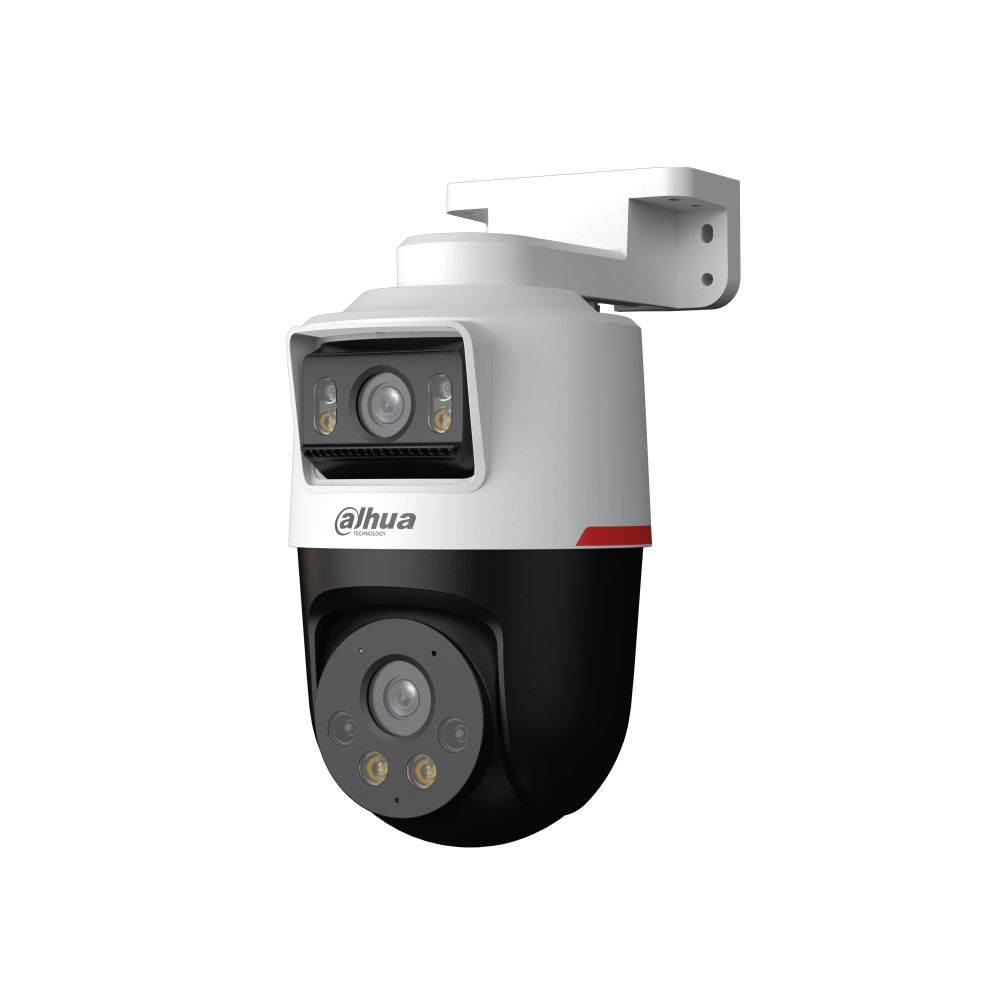

IPC-PTS2249B-E2-S-PV-PRO

2+2 Mpx – Image Sensor : 1/2.9” – Objectif : Ch1 (PT Lens): 3.6mm Ch2 (Fixed Lens): 3.6mm – IR 30m – Bulit in Mic – Micro SD memory 256GB – WDR (120dB) – IP66

somdn_product_page
,
Camera
Image Sensor Channel 1 (PT Lens): 1/2.9″ CMOS Channel 2 (Fixed Lens): 1/2.9″ CMOS
Max. Resolution Channel 1 (PT Lens): 1920 (H) × 1080 (V) Channel 2 (Fixed Lens): 1920 (H) × 1080 (V)
ROM 128 MB
RAM 256 MB
Scanning System Progressive
Electronic Shutter Speed Auto/Manual 1/3 s-1/100,000 s
Min. Illumination 0.0006 [email protected]
S/N Ratio >56 dB
Illumination Distance Up to 30 m (98.43 ft) (Warm light)
Illuminator On/Off Control Auto; Manual
Illuminator Number 4 (Warm light)
Lens
Lens Type Channel 1 (PT Lens): Fixed-focal Channel 2 (Fixed Lens): Fixed-focal
Lens Mount M12
Focal Length Channel 1 (PT Lens): 3.6 mm Channel 2 (Fixed Lens): 3.6 mm
Max. Aperture Channel 1 (PT Lens): F1.0 Channel 2 (Fixed Lens): F1.0
Field of View Channel 1 (PT Lens): H: 81°; V: 44°; D: 95° Channel 2 (Fixed Lens): H: 81°; V: 44°; D: 95°
Iris Control Fixed
Close Focus Distance Channel 1 (PT Lens): 1.7 m (5.58 ft) Channel 2 (Fixed Lens): 1.7 m (5.58 ft)
DORI Distance Lens Detect Observe Recognize Identify
Channel 1 (PT Lens) 55.7 m (182.74 ft) 22.3 m (73.16 ft) 11.1 m (36.42 ft) 5.6 m (18.37 ft)
Channel 2 (Fixed Lens) 55.7 m (182.74 ft) 22.3 m (73.16 ft) 11.1 m (36.42 ft) 5.6 m (18.37 ft)
DORI (Detect, Observe, Recognize, Identify) is a standard system (EN-62676-4) for defining the ability of a person viewing the video to distinguish persons or objects within a covered area. The numbers in this table do not reflect intelligent function distances. For intelligent function distances, refer to installation and commissioning manual/project design tool.
Intelligence
IVS (Perimeter Protection) Intrusion, tripwire (the two functions support the classification and accurate detection of vehicle and human)
SMD SMD Plus
Smart Search Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos
Video
Video Compression H.265; H.264; H.264H; H.264B; MJPEG (Only supported by sub stream)
Smart Codec Smart H.265+; Smart H.264+
Video Frame Rate Channel 1 (PT Lens): Main stream: 1920 × 1080@(1-25/30 fps) sub stream: 704 × 576@(1-25 fps)/704 × 480@(1-30 fps) Channel 2 (Fixed Lens): Main stream: 1920 × 1080@(1-25/30 fps) sub stream: 704 × 576@(1-25 fps)/704 × 480@(1-30 fps) *The values above are the max. frame rates of each stream; for multiple streams, the values will be subjected to the total encoding capacity.
Streaming Capability 2 streams
Resolution Channel 1 (PT Lens): 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240) Channel 2 (Fixed Lens): 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240)
Bit Rate Control VBR; CBR
Video Bit Rate H.264: 32 kbps-4096 kbps; H.265: 12 kbps-4096 kbps
Day/Night Color/B/W
BLC Yes
HLC Yes
WDR 120 dB
White Balance Auto; natural; street lamp; outdoor; manual; regional custom
Gain Control Auto/Manual
Noise Reduction 3D NR
Motion Detection OFF/ON (4 areas, rectangular)
Region of Interest (RoI) Yes (4 areas)
Smart Illumination Yes
Image Rotation 0°/90°/180°/270° (Support 90°/270° with 1080p resolution and lower)
Mirror Yes
Privacy Masking 4 areas
LDC Yes
Audio
Built-in MIC Yes, built-in Mic
Built-in Speaker Yes, built-in speaker
Audio Compression G.711a; G.711Mu; PCM; G.726
Alarm
Alarm Event No SD card; SD card full; SD card error; network disconnection; IP conflict; illegal access; motion detection; video tampering; tripwire; intrusion; audio detection; voltage detection; SMD; security exception
Network
Network Port RJ-45 (10/100 Base-T)
SDK and API Yes
Network Protocol IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; PPPoE; P2P; Bonjour; Auto Registration
Security Digest; WSSE; Account lockout; Security logs; IP/MAC filtering; Generation and importing of X.509 certification; syslog; HTTPS; 802.1x; Trusted boot; Trusted execution; Trusted upgrade; Session security; Security warning
Interoperability ONVIF (Profile S & Profile G & Profile T); CGI
User/Host 20 (Total bandwidth: 48 M)
Storage FTP; SFTP; Micro SD card (support max. 256 GB); NAS
Browser IE; Chrome; Firefox
Management Software Smart PSS Lite; DSS; DMSS
Mobile Client Android;iOS
Function
Light Warning Warm light warning Flash/Solid on duration: 5 s-30 s Flash frequency: high, medium, low
Sound Warning Offers 3 sound alarms and supports importing custom sound alarms. Sound: 0-100. Play times can be set from 1 to 10.
PTZ
Pan/Tilt Range Channel 1 (PT Lens): Pan: 0° to 350°; Tilt: 0° to 90°; Channel 2 (Fixed Lens): Pan: 0° to 326°; Tilt: -10° to 15°
Manual Control Speed Pan: 0.1°/s-55.4°/s; Tilt: 0.1°/s-29.3°/s
Preset 300
Preset Speed Pan: 55.4°/s; Tilt: 29.3°/s
Tour 8 (up to 32 presets per tour)
Power-off Memory Yes
Idle Motion Tour;Preset
Certification
Certifications CE-LVD: EN62368-1; CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU
Power
Power Supply 12 VDC (±30%); PoE (802.3af)
Power Consumption Basic: 2.3 W (12 VDC); 3.1 W (PoE); Max.: 9.2 W (12 VDC); 10.5 W (PoE) (intelligence on + WDR + illuminator on + PT rotation + speaker on)
Environment
Operating Temperature -40 °C to +50 °C (-40 °F to +122 °F)
Operating Humidity ≤95% (RH), non-condensing
Storage Temperature -40 °C to +50 °C (-40 °F to +122 °F)
Storage Humidity ≤95% (RH), non-condensing
Protection IP66
Structure
Casing Material Plastic
Product Dimensions 159.4 mm × 110.1 mm × 210 mm (6.28″ × 4.33″ × 8.27″) (L × W × H)
Net Weight 0.62 kg (1.37 lb)
Gross Weight 0.87 kg (1.92 lb)
Image Sensor

Channel 1 (PT Lens): 1/2.9" CMOS
Channel 2 (Fixed Lens): 1/2.9" CMOS
Max. Resolution

Channel 1 (PT Lens): 1920 (H) × 1080 (V)
Channel 2 (Fixed Lens): 1920 (H) × 1080 (V)
Lens Type

Channel 1 (PT Lens): Fixed-focal
Channel 2 (Fixed Lens): Fixed-focal
Built-in MIC

Yes
