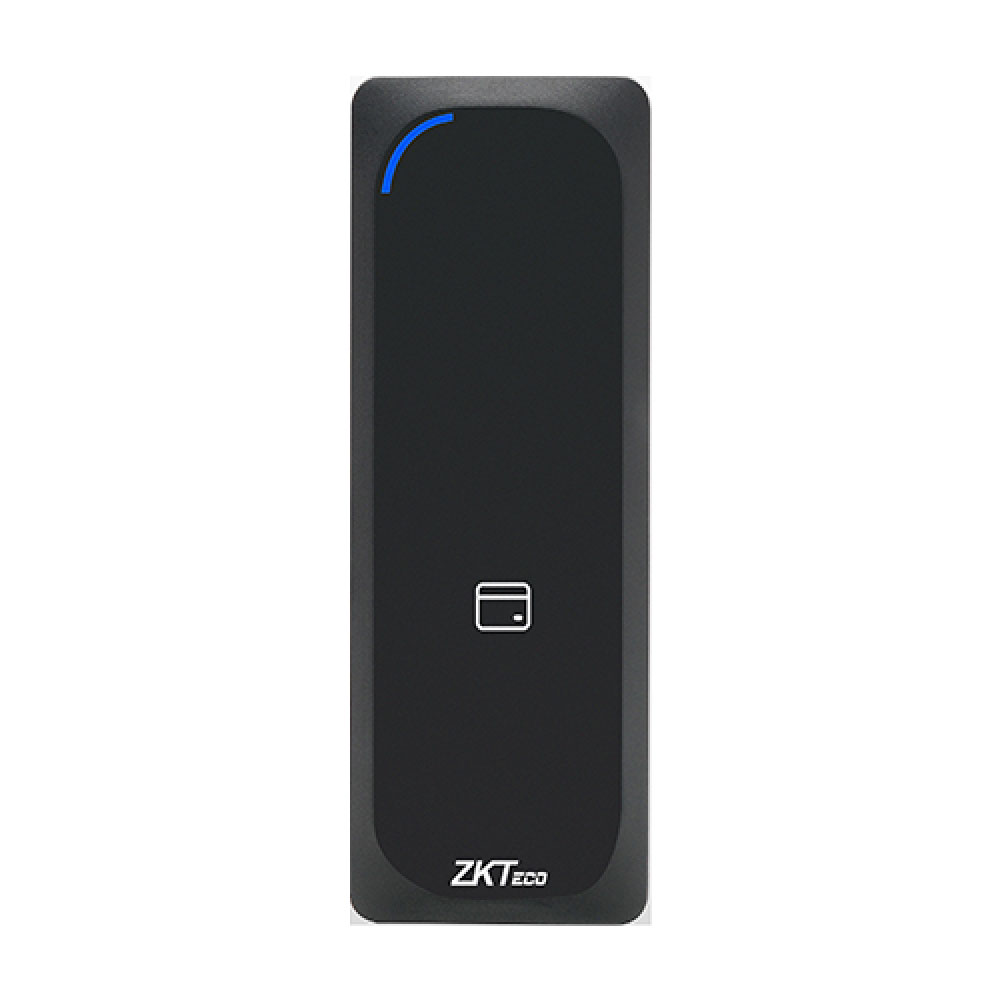

| Model | KR901 |
| Hardware | Physical Keypad: N/A; RFID Module: ID & IC; Tamper Switch: Support |
| Authentication Method | Card |
| Card Type | ID Card@125kHz & IC [email protected] (Standard) |
| Verification Method | ＜0.3s @ Card |
| Recognition Distance | ＜4cm @ Card |
| Communication | Wiegand output only (W34 / 66) Or RS485 (ZK-RS485) & Wiegand output (W34 / 66) |
| Visual Indicator | LED Indicators Power On: Blue = Standby Status: Green = Verification successful Red = Verification failed |
| Audio Indicator | Buzzer |
| Tamper Switch | Support |
| Operating Environment | Indoor / Outdoor |
| Power Supply | 9V~12V DC |
| Working Temperature | -20℃ to 60℃ |
| Working Humidity | 10% – 90% RH (Non-condensing) |
| Dimension(L*W*H) | 111*44.5*21 mm |
| Gross Weight | 0.16 Kg |
| Net Weight | 0.13 Kg |
| Installation | Compatible with mullion mount or flat surface mounting |
| Housing Material | ABS Plastic |
| Ingress Protection Rating | IP65 (water & dust proof ) |
| Certifications | ISO9001, ISO14001, CE, FCC, RoHS |
| Factory ID | AC03-KR91H-01 |
KR901
Authentication Method: Card
Dimensions(L*W*H): 111*44.5*21mm
Gross Weight: 0.16Kg
Net Weight: 0.13Kg
| Card Type | ID Card@125kHz & IC [email protected] (Standard) |
|---|---|
| Verification Speed | ＜0.3s @ Card |
| Recognition Distance | ＜4cm @ Card |
Related products
-
Rfid Reader
ZAC-N05-MRW
• Waterproof IP68
• Ice-Blue luminous digital bcklight Button
• Metal case, anti-vandal
• Capacity:2000users
• Three accesses: pin, card, pin+card
• WG26output/ input -
Rfid Reader
ZAC-N03-MR
• Backlight keypad
• Metal case, anti-vandal
• Multi-function standalone access controller and reader
• WG26Input / output
• Capacity : 2000cards/codes
• Three accesses: card, pin, card+pin -
Rfid Reader

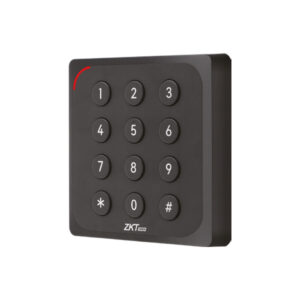

KR904
Authentication Method: Card / Password
Dimensions(L*W*H): 86*86*16.15m
Gross Weight: 0.17Kg
Net Weight: 0.14Kg -
Rfid Reader

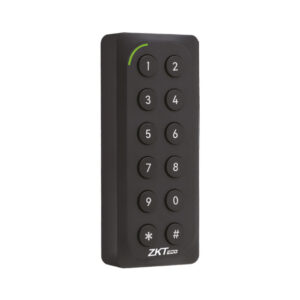

KR902
Authentication Method: Card / Password
Dimensions(L*W*H): 111*44.5*21.8mm
Gross Weight: 0.16Kg
Net Weight: 0.13Kg -
Rfid Reader

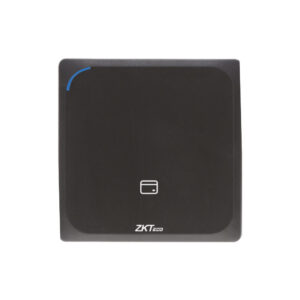

KR903
