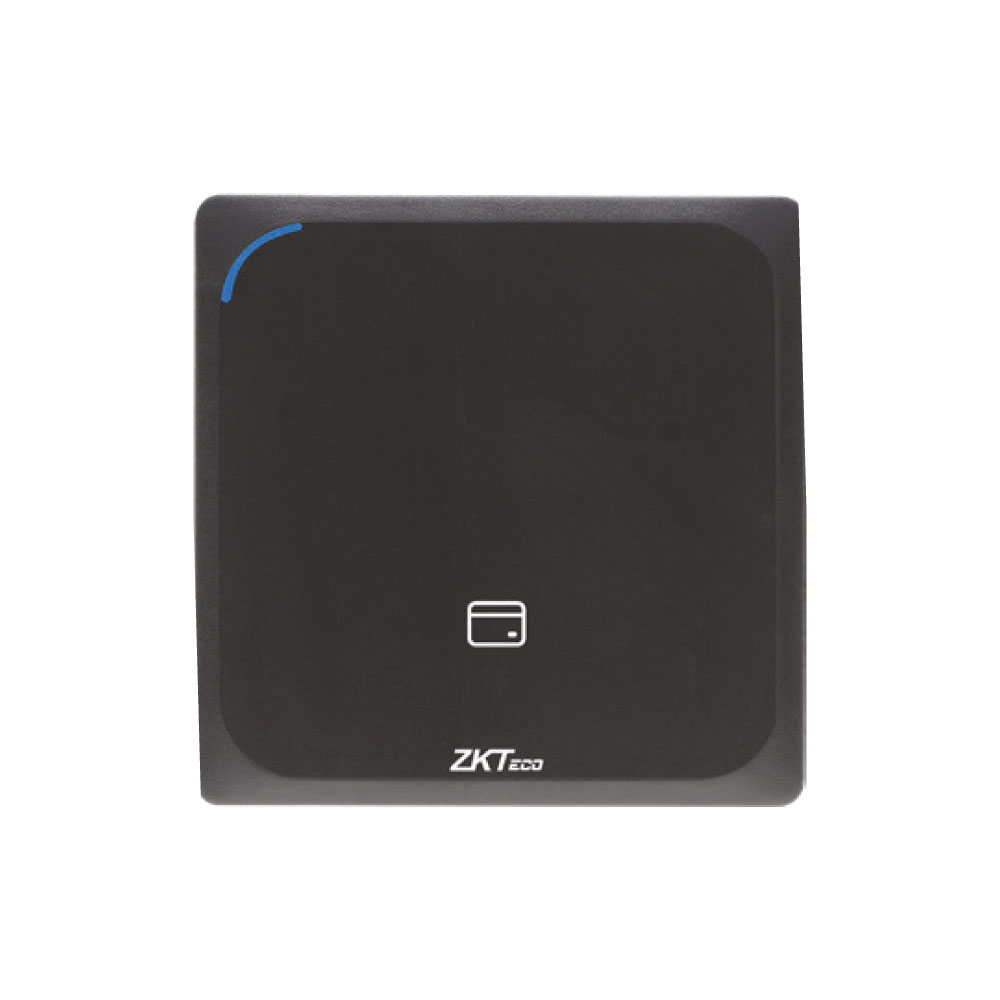

| Model | KR903 |
| Hardware | Physical Keypad: N/A; RFID Module: ID & IC; Tamper Switch: Support |
| Authentication Method | Card |
| Card Type | ID Card@125kHz & IC [email protected] (Standard) |
| Verification Method | ＜0.3s @ Card |
| Recognition Distance | ＜4cm @ Card |
| Communication | Wiegand output only (W34 / 66) Or RS485 (ZK-RS485) & Wiegand output (W34 / 66) |
| Visual Indicator | LED Indicators Power On: Blue = Standby Status: Green = Verification successful Red = Verification failed |
| Audio Indicator | Buzzer |
| Tamper Switch | Support |
| Operating Environment | Indoor / Outdoor |
| Power Supply | 9V~12V DC |
| Working Temperature | -20℃ to 60℃ |
| Working Humidity | 10% – 90% RH (Non-condensing) |
| Dimension(L*W*H) | 86*86*16.15 mm |
| Gross Weight | 0.17 Kg |
| Net Weight | 0.14 Kg |
| Installation | Wall-mount (Compatible with Asian gang box) or flat surface mounting |
| Housing Material | ABS Plastic |
| Ingress Protection Rating | IP65 (water & dust proof ) |
| Certifications | ISO9001, ISO14001, CE, FCC, RoHS |
| Factory ID | AC03-KR93H-01 |
KR903
Authentication Method: Card
Dimensions(L*W*H): 86*86*16.15mm
Gross Weight: 0.17Kg
Net Weight: 0.14Kg
| Card Type | ID Card@125kHz & IC [email protected] (Standard) |
|---|---|
| Verification Speed | ＜0.3s @ Card |
| Recognition Distance | ＜4cm @ Card |
