| System | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Main Processor | Industrial-grade processor | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Operating System | Embedded Linux | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Operating Interface | Web, Local GUI | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| AI | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| AI by Recorder | Face detection; face recognition; perimeter protection; and SMD | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| AI by Camera | Face detection; face recognition; perimeter protection; SMD; ANPR; people counting; stereo analysis; heat map | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Perimeter Protection | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Perimeter Performance AI by Recorder (Number of Channels) | 2 channels, 10 IVS rules for each channel | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Perimeter Performance of AI by Camera (Number of Channels) | All channels (8 targets/s) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Face Detection | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Face Attributes | Gender; age group; glasses; expressions; face mask; beard | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Face Detection Performance of AI by Recorder (Number of Channels) | 1 channel (up to 12 face images/s each channel) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Face Detection Performance of AI by Camera (Number of Channels) | All channels (8 targets/s) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Face Recognition | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Face Database Capacity | Up to 10 face databases with 20,000 images, with a total capacity of 2.5 G. Name, gender, birthday, address, credential type, credential No., countries & regions and state can be added to each face image. | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Face Recognition Performance of AI by Recorder (Number of Channels) | 8-channel FD (by camera) + FR (by recorder),image stream: 12 face images/s
1-channel FD (by recorder) + FR (by recorder), video stream: 12 face images/s |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Face Recognition Performance of AI by Camera (Number of Channels) | All channels (8 targets/s) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| SMD Plus | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| SMD Plus by Recorder | 4 channels: Secondary filtering for human and motor vehicle, reducing false alarms caused by leaves, rain and lighting condition change | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| SMD by Camera | All channels (16 targets/s) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Audio and Video | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Access Channel | 32 channels | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Network Bandwidth | AI disabled: 256 Mbps incoming, 256 Mbps recording and 256 Mbps outgoing
AI enabled: 180 Mbps incoming, 180 Mbps recording and 180 Mbps outgoing |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Resolution | 16 MP;12 MP;8 MP;6 MP;5 MP;4 MP;3 MP;1080p;720p;960p;D1;CIF | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Decoding Capability | AI disabled: 2-channel 16 MP@30 fps; 2-channel 12 MP@30 fps; 4-channel 8 MP@30 fps; 4-channel 6 MP@30 fps; 6-channel 5 MP@30 fps; 8-channel 4 MP@30 fps; 16-channel 1080p@30 fps; 32-channel 720p@30 fps
AI enabled: 1-channel 16 MP@30 fps; 2-channel 12 MP@30 fps; 3-channel 8 MP@30 fps; 3-channel 6 MP@30 fps; 4-channel 5 MP@30 fps; 6-channel 4 MP@30 fps; 12-channel 1080p@30 fps; 16-channel 720p@30 fps; 32-channel D1@30 fps |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Video Output | 1 HDMI, 1 VGA
HDMI: 3840 × 2160, 1920 × 1080, 1280 × 1024, 1280 × 720 VGA: 1920 × 1080, 1280 × 1024, 1280 × 720 *Simultaneous/heterogeneous video sources output for VGA and HDMI is configurable. |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Multi-screen Display | 1st Screen: 1/4/8/9/16/25/36
2nd Screen: 1/4/8/9/16 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Third-party Camera Access | Panasonic, Sony, Hanwha, Axis, Pelco, Arecont, ONVIF, Canon | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Compression Standard | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Video Compression | Smart H.265+; H.265; Smart H.264+; H.264; MJPEG | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Audio Compression | G.711a; G.711u; PCM; G726 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Network | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Network Protocol | HTTP; HTTPS; TCP/IP; IPv4; IPv6; RTSP; UPnP; SNMP; UDP; SMTP; NTP; DHCP; DNS; IP Filter; PPPoE; DDNS; FTP; Alarm Server; IP Search (Support Dahua IP camera, DVR, NVS, etc.); P2P; Auto Registration | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Mobile Phone Access | iOS; Android | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Interoperability | ONVIF 23.12(Profile T; Profile S; Profile G); CGI; SDK | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Browser | Chrome; IE9 and later; Firefox | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Recording Playback | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Multi-channel Playback | Up to 16 channels | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Record Mode | General, motion detection; intelligent; alarm | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Backup Method | USB device and network | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Playback Mode | Instant playback, general playback, event playback, tag playback, smart playback | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Storage | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Disk Group | Yes | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Alarm | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| General Alarm | Motion detection; privacy masking; video loss; scene changing; PIR alarm; IPC external alarm | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Anomaly Alarm | Error (no disk; disk error; low space; low quota space; abnormal disk health; network disconnection; IP conflict; MAC conflict); video loss; video tampering; camera offline; audio detection | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Intelligent Alarm | Face detection; face recognition; perimeter protection; SMD Plus; people counting; stereo analysis; heat map | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Alarm Linkage | Record; snapshot; IPC external alarm output; audio; buzzer; log; preset; email | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Port | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Audio Input | 1-channel RCA | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Audio Output | 1-channel RCA | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Alarm Input | 4 channels | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Alarm Output | 2 channels | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Disk Interface | 2 SATA ports, up to 20 TB.The maximum HDD capacity varies with environment temperature. | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| USB | 2 (1 front USB 2.0 port, 1 rear USB 2.0 port) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| HDMI | 1 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| VGA | 1 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Network Port | 1 (10/100/1000 Mbps Ethernet port, RJ-45) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| General | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Power Supply | 12 VDC, 4 A | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Power Consumption | <10 W(without HDD) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Net Weight | 1.51 kg (3.33 lb) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Gross Weight | 2.76 kg (6.08 lb) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Product Dimensions | 375 mm × 284.3 mm × 53 mm (14.76″ × 11.19″ × 2.09″) (W × D × H) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Packaging Dimensions | 433 mm × 141 mm × 366 mm (17.05″ × 5.55″ × 14.41″) (W × L × H) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Operating Temperature | -10 °C to +55 °C (+14 °F to +131 °F) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Storage Temperature | -20 °C to +60 °C (-4 °F to +140 °F) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Operating Humidity | 10%-93% (RH), non-condensing | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Certifications | FCC: 47 CFR FCC Part15, SubpartB, Class A
CE-EMC: EN 55032:2015+A1:2020; EN IEC 61000-3-2:2019+A1:2021; EN 61000-3-3:2013+A1:2019+A2:2021; EN 55035:2017+A11:2020; EN 50130-4:2011+A1:2014 CE-LVD: EN 62368-1:2014 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||

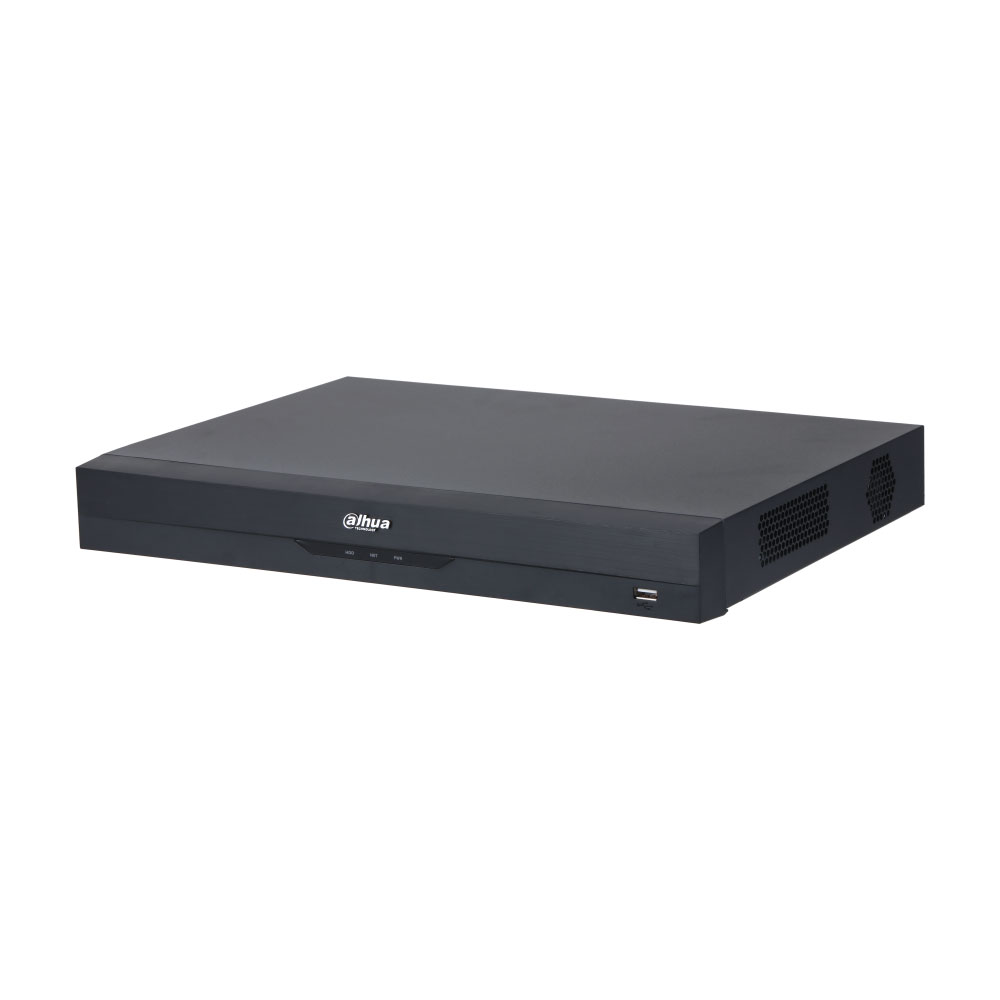

NVR4232-EI
Vidéo Input: 32 channels
AI by NVR: 1-channel face detection and recognition;
2-channel perimeter protection; up to 10 face databases and 20,000 face images; 4-channel SMD Plus.
Alarm In: 4 (I), 2 (O)
Audio: 1 ch (I), 1 ch (O), RCA
Codec decoding: Smart H.265+/H.265/Smart H.264+/H.264/MJPEG
Display: 1 HDMI, 1 VGA
Record Rate: AI off 256 Mbps AI on 180 Mbps
Bit Rate Per Channel: 16Kbps~20Mbps
HDD: 2 SATA III port, up to 16TB + 2 USB
Network: RJ-45 port (10/100M/1000M)
Resolution(realtime preview): Up to 16Mpx
