| Specification | Details |
|---|---|
| Model Name | Saturn-S1000 Saturn-S1200 |
| Audio Indicator | Internal speaker |
| Visual Indicator | Top LED indicator: Blue = Door closed / Standby – Green = Door opening – Red = Door closing / Alarm Slide LED indicator: Green = Lane available – Red = Lane unavailable |
| Display | NA |
| Lane Type | Saturn-S1000: Single lane Saturn-S1200: Dual Swing (for additional lane) |
| Lane Width | 650mm (Standard) 900mm (Optional) |
| Barrier Movement Type | Swing |
| Motor | DC brushless motor |
| Movement Speed | Average 1s per movement (Adjustable timing) |
| Lid Material | Polycarbonate + 2.5D tempered glass |
| Lid Authentication Options | Under mount: QR Code / RFID Surface mount: Facial Authentication |
| Chassis Material | Cold-rolled SPCC Steel (GB700) / Polycarbonate (Side Lid) |
| Chassis Colour | Pearl White, Space Gray, Carbon Black, Bay Blue, Mist Brown |
| Barrier Material | Clear acrylic (635×300mm) standard Tempered glass (635×425mm) optional |
| IR Sensors | 4 pairs |
| Motherboard Function | System configuration, access control |
| Motherboard Communication | Fire alarm port (relay) ×1, RS485 port ×1 |
| Controller | Optional (C3 / InBio Series) or customization |
| Credential Options | RFID: Pro ID Series, KR Series Fingerprint: FR1200 / FR1500S |
| Flow Rate | Facial Authentication: 35 persons/min Fingerprint: 30 persons/min QR Code: 30 persons/min RFID: 35 persons/min |
| Accessibility | Adult, Children (with care), Disability (with care) |
| Power Supply | 110V / 220V ±10% AC @50Hz/60Hz |
| Power Rating | 10VA (Standby) 40VA (Operation) |
| Fire Signal | Voltage free contact input |
| Noise Level | < 60dB |
| MTTR | < 60 minutes |
| MCBF | 3 million |
| Weight | Saturn-S1000: 50kg Saturn-S1200: 30kg |
| Dimensions (L×W×H) | 1200 × 150 × 1020 mm |
| Operating Temperature | -30°C to 70°C |
| Operating Humidity | 5% – 90% RH (Non-condensing) |
| Certifications | CE, FCC |
| Ingress Protection | IPX4 |
| Supported Software | ZKBio CVAccess / ZKBio CVSecurity |
| Safety Features | Fire alarm fail state input Automatic swing open during power off |
| Security Features | Anti-tailgating, Anti-pinch |
| Product Delivery | Pre-assembled |
| Application Environment | Indoor / Outdoor (if sheltered) |
| Site Preparation | Flat & level finished floor |
| Security Level | Low |
| Emergency Mode | Supported (auto swing open) |
| Packing Material | Carton (standard) / Wooden (optional) |

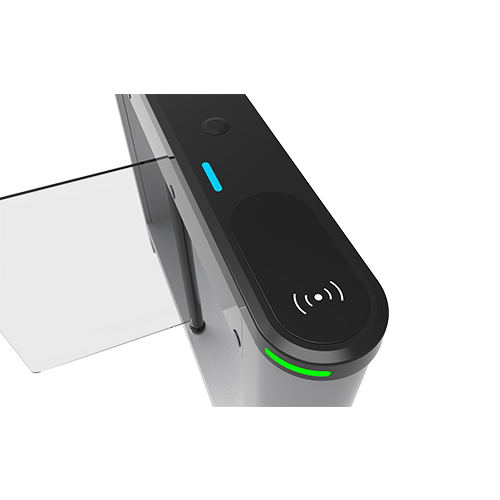

Saturn Series
The Saturn Series combines intelligent access control, advanced security features, and reliable safety mechanisms, making it an ideal solution for office buildings, corporate headquarters, commercial centers, and secured facilities.
| Infrared Sensor | A sensor |
|---|---|
| LED Indicator | Support |
| Reader | N/A |
