| Model Name | SBT2000S |
| Reader | SBT2000S: N/A |
| Controller | SBT2000S: N/A |
| Card Capacity | SBT2000S: N/A |
| Fingerprint Capacity | SBT2000S: N/A |
| Log Capacity | SBT2000S: N/A |
| Power Requirements | AC 110V / 220V, 50 / 60Hz |
| Lane Width (mm) | 800 (optional ≤920mm） |
| Infrared Sensor | A sensor |
| LED Indicator | Support |
| Cabinet Material | Cold rolled sheet |
| Lid Material | Acrylic |
| Barrier Material | Tempered glass |
| Barrier Movement | Swing |
| Emergency Mode | Support |
| Working Temperature | -15°C to 60°C |
| Working Humidity | 20% to 93% (non-condensing) |
| Working Environment | Indoor / Outdoor (if sheltered) |
| Dimension (L*W*H) | 202 * 187 * 1109 ( mm ) |
| Dimension with Packing (L*W*H) | 280 * 280 * 1160 ( mm ) |

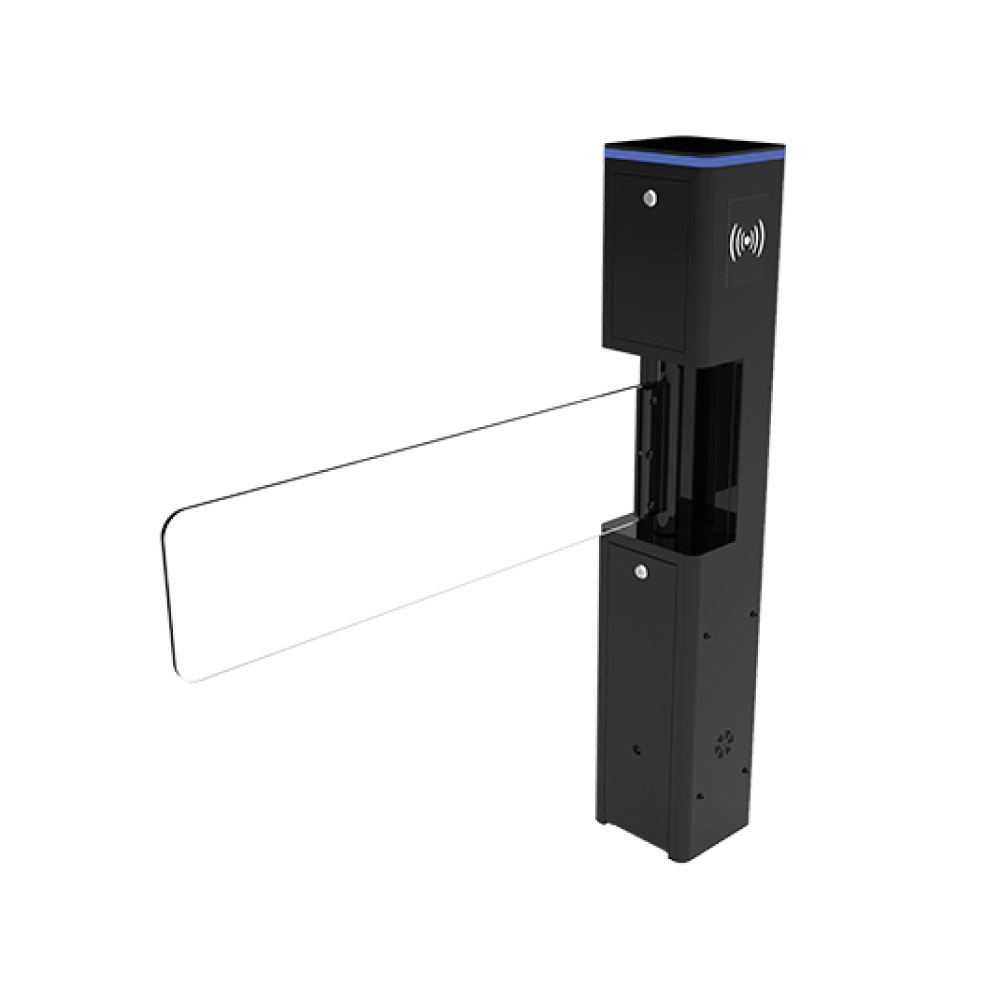

SBT2000S
Single-lane swing barrier turnstile
| Infrared Sensor | A sensor |
|---|---|
| LED Indicator | Support |
| Reader | N/A |
Related products
-

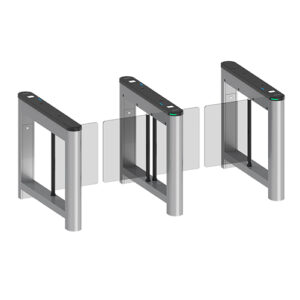

Swing Barrier
