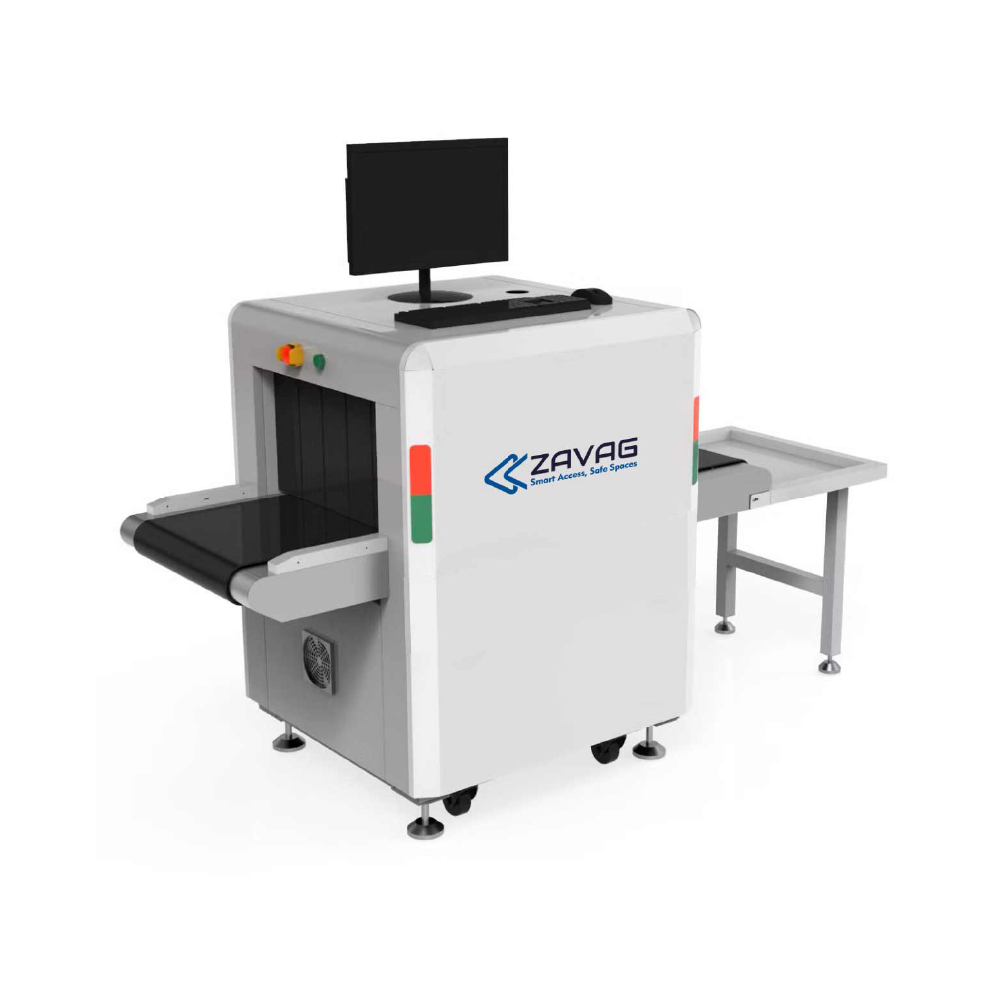

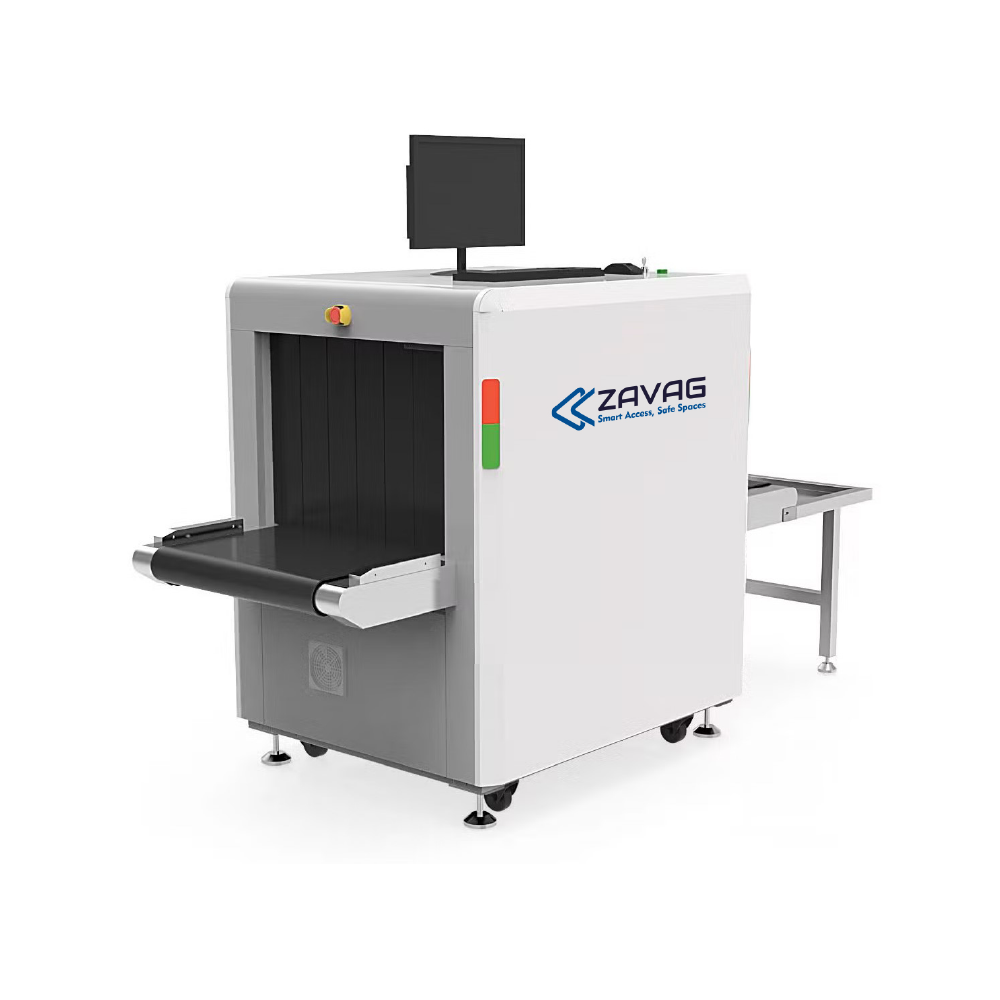

X-RAY BAGGAGE SCANNER MACHINE TECHNICAL DATA
Tunnel Size : 500(W)×300(H)mm
Conveyor Speed : 0.22 m/s
Conveyor Max Load : 120 kg
Single inspection dosage : < 1.5µGy
Wire Resolution : 0.1mm metal line
Steel Penetration : 8MM armor plate
Film Safety : For ISO 1600
Maximum leakage radiation : <0.3µGY/H
Package size : 1700*870*1350mm
Gross weight : 270kg
X-RAY BAGGAGE SCANNER MACHINE FEATURES
Cost effective World class image quality
High-end image capture, display, and archival
Wire Resolution for 38 AWG
Material discrimination based on atomic number signature
Based on atomic number signatures, 3 and 6 colors
Threat Image Projection
X RAY BAGGAGE SCANNER MULTI-ENERGY FUNCTION
• Multi-energy colour : Display organic material or inorganic for orange, and display mixtures for green.
• High energy/low energie : toggle to switch to display both energy types, high energy for metal etc… and low energy for nonmetallic.
• Auxiliary functions for drugs and explosives : These help detect dangerous material, such as explosives and drugs.
• Audible and visible alarms: sound and sight signals to indicate compliance with conditions.
X-RAY BAGGAGE SCANER GENERATOR : VERTICALLY UPWARD
Tube Current : 0.4~0.5MA (adjustable)
Anode Voltage (adjustable : 80 KV)
Angle : 60°
Generator cooling/working period Sealed oil bath and forced air/100%
