| · Model | F35 |
| · Display | 2.4″@ TFT Color LCD Screen (720*1280) |
| · Camera | Camera @ 2MP |
| · Field of View | Diagonal: 145° Horizontal: 118° Vertical: 62° |
| · Operation System | Linux |
| · Hardware | CPU: 1.2GHz Dual Core RAM: 256MB; ROM: 512MB Speaker: 8ohms±20% @1.0W Microphone: *1 (Sensitivity: -29 to -35 dB / Omni-directional / Signal-to-Noise Ratio: 58 dB / Impedance: 2.2 kΩ Fingerprint Sensor: In-Glass Fingerprint (Z-ID) |
| · Authentication Method | Fingerprint / Card / Password (Physical Touch Keypad ) |
| · User Capacity | 10,000 (1:N) |
| · Card Capacity | 10,000 (1:N) |
| · Fingerprint Template Capacity | 10,000 (1:N) |
| · Transaction Capacity | 500,000 |
| · Max. User Password Length | 6 to 8 Digits |
| · Biometric Verification Speed | less than 0.3 sec (Fingerprint) |
| · False Acceptance Rate (FAR) % | FAR ≦ 0.0001% (ZKFingerprint V10.0) |
| · False Rejection Rate (FRR) % | FRR ≦ 0.01% (ZKFingerprint V10.0) |
| · Biometric Algorithm | ZKFingerprint V10.0 |
| · Support Card Type | ID Card@125 kHz (Standard) Optional Multi-Tech Module: Module1: ID & IC & DESFire EV1 / EV2; (125 kHz & 13.56 MHz Dual Frequency) Module 2: ID & IC & DESFire EV1 / EV 2 & FeliCa & Legic & HID Prox (125 kHz & 13.56 MHz Dual Frequency) Module 3: ID & IC & DESFire EV1 / EV2 & FeliCa & Legic & HID Prox & HID iClass (125 kHz & 13.56 MHz Dual Frequency) |
| · Communication | TCP/IP*1 Wi-Fi (IEEE802.11a/g/n) @ 2.4 GHz Wiegand (Input & Output)*1 RS485: ZKTeco RS485 *1 Aux Inputs *1, Aux Outputs *1, Electric Lock*1, Door Sensor*1, Exit Button*1, Alarm*1, Doorbell*1 |
| · Standard Functions | Webserver, ADMS, DST, Up to 14-digit User ID, Access Levels, Groups, Holidays, Anti Passback, Record Query, Tamper Switch Alarm, Multiple Verification Methods Video Door Phone, ONVIF (Compatible with Profile S, Profile T, Profile G, Profile C, Profile Q & Profile A), AC Push and TA Push, Protocol Switch, HTTPS / SSH Backend Access, T9 Keyboard (Input) |
| · Optional Functions | ZSmart, SIP Client (Ver2.0), Wi-Fi, IC Card, Multi-Tech Module: Module 1 / Module2 / Module 3,Wireless Doorbell |
| · Access Control Interface | RS485 (DM10 Controller 1 Door Expansion (Coming soon) / RS485 Card Reader / Fingerprint Reader) |
| · Power Supply | DC 12V 3A |
| · Operating Temperature | -5℃ to 55℃ (23 ℉ to 131 ℉ ) |
| · Operating Humidity | 10% to 90% RH (Non-condensing) |
| · Dimensions | 195 mm*75 mm*25.35 mm (L*W*H) |
| · Gross Weight | 1.13 Kg |
| · Net Weight | 0.52 Kg |
| · Supported Software | Software: ZKBio CVAccess / ZKBioTime Mobile App: ZSmart |
| · Installation | Wall-mount (Compatible with Asian Gang-box / Single Gang-Box / European Gang-Box) |
| · Housing Material | Aluminium Alloy |
| · Ingress Protection Rating | IP65 (waterproof and dustproof ) IK04 (Vandal Resistant) |
| · Certifications | ISO14001, ISO9001, CE, FCC, RoHS |

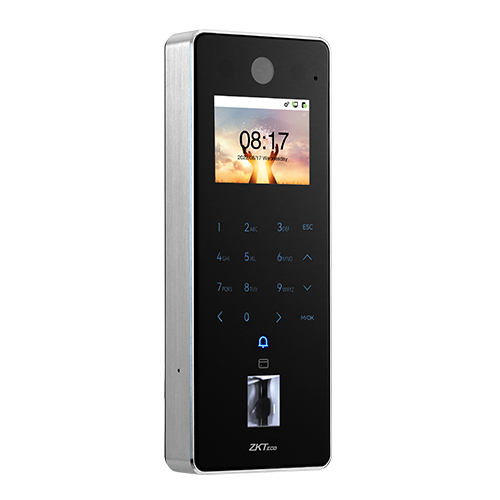

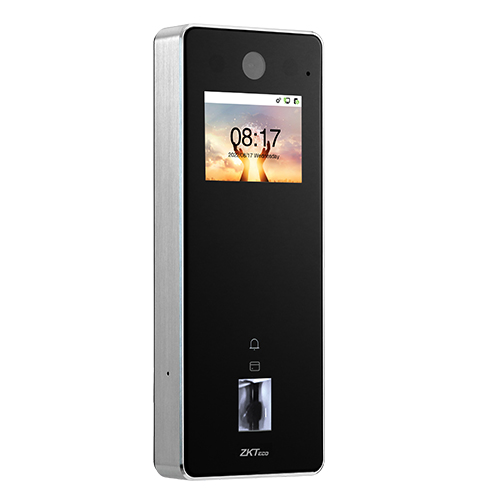

F35
Standalone Access Control
Terminal / Support In-Glass
Fingerprint Verication
With Video Intercom Function
Finger : 10000, User: 10000,
Card : 10000, Trans : 500000
Communication TCP/IP*1
Wiegand (Input & Output)*1 –
ZKTeco RS485 *1
ZKFingerprintV10.0
