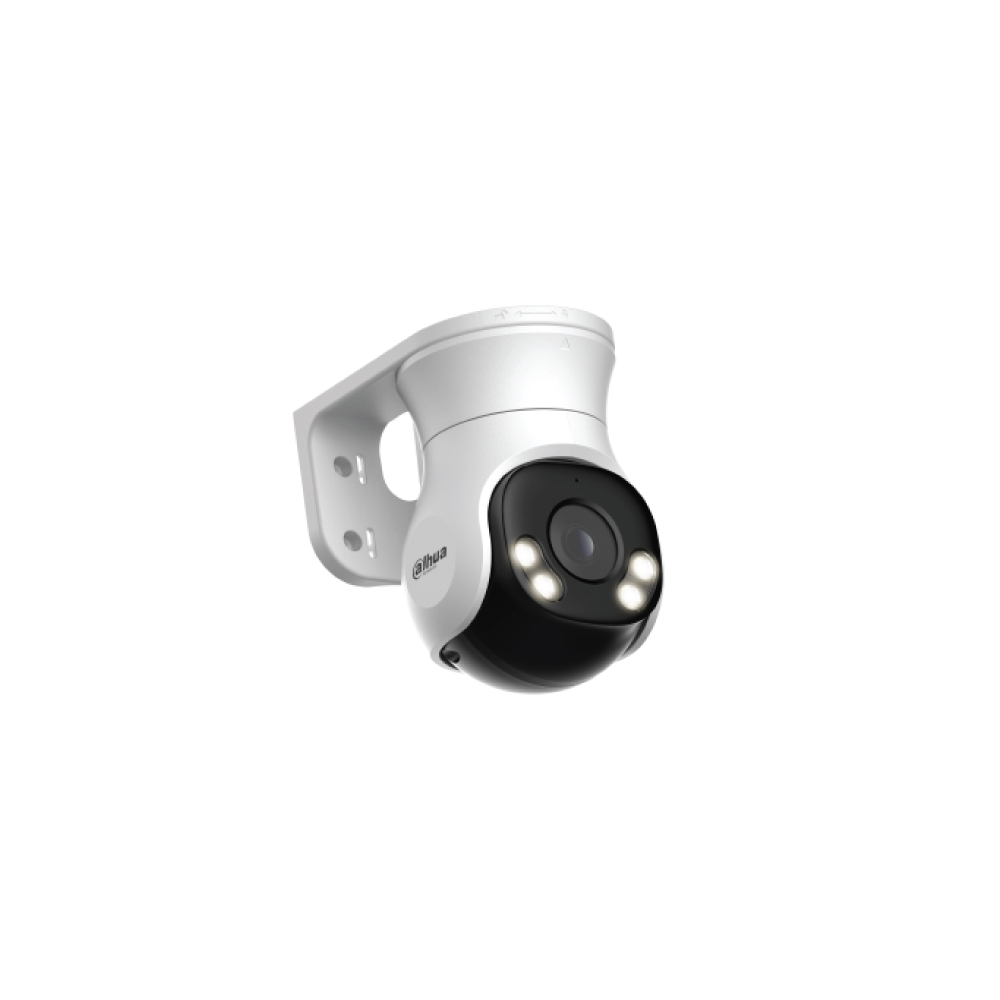

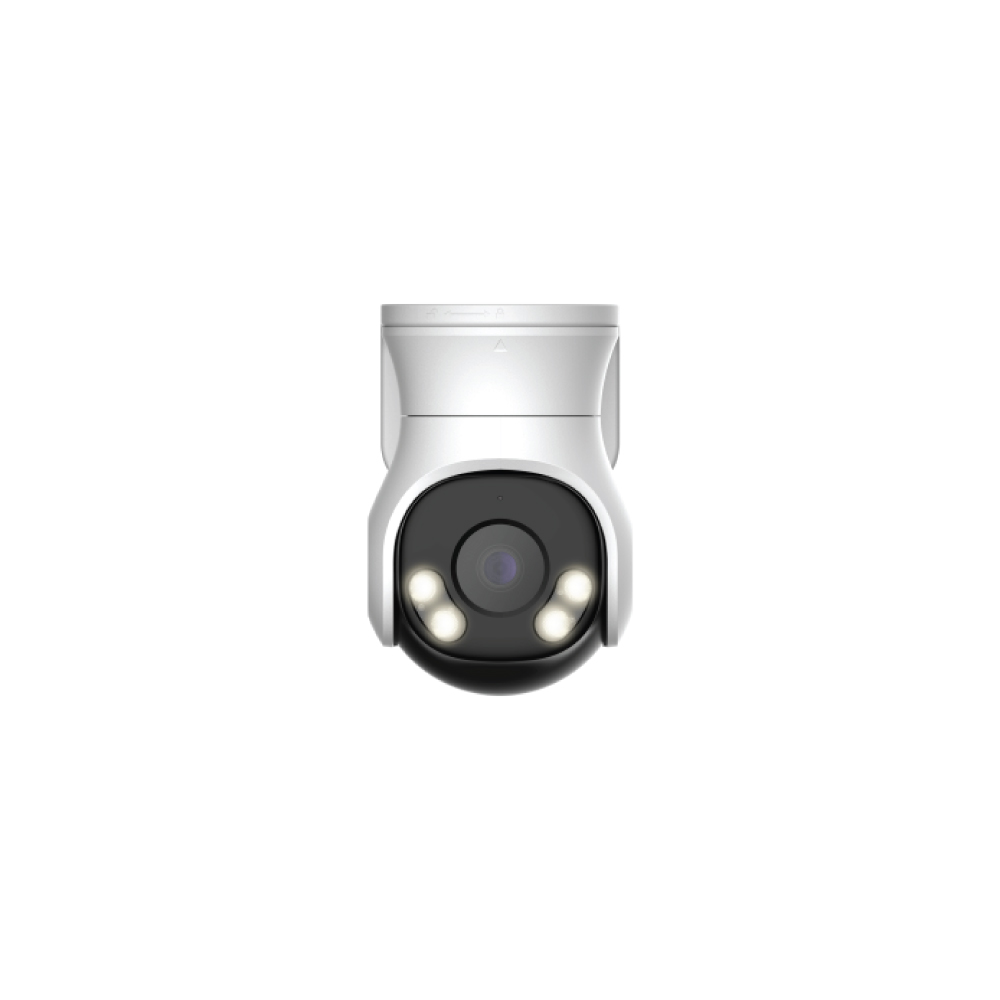

HAC-PT1200A-IL-A

somdn_product_page
Marque :
Camera
Image Sensor 2 MP CMOS
Max. Resolution 1920 (H) × 1080 (V)
Scanning System Progressive
Electronic Shutter Speed PAL: 1/25 s–1/100,000 s;

NTSC: 1/30 s–1/100,000 s
Min. Illumination 0.01 [email protected] (Color, 30 IRE)

0.001 [email protected] (B/W, 30 IRE)

0 lux (Illuminator on)
S/N Ratio >65 dB
Illumination Distance IR: 40 m (131.23 ft)

Warm light: 40 m (131.23 ft)
Illuminator On/Off Control Auto
Illuminator Number 4 (Warm light);4 (IR light)
Angle Adjustment Pan: 0°–355°

Tilt: 0°–90°

*DO NOT adjust the angle of the main body or enclosure manually
Lens
Lens Type Fixed-focal
Auto Focus No
Lens Mount M12
Focal Length 2.8 mm;3.6 mm
Max. Aperture F2.0
Field of View 2.8 mm: H: 102°; V: 60°; D: 129°

3.6 mm: H: 83°; V: 48°; D: 105°
Iris Control Fixed
Close Focus Distance 2.8 mm: 0.5 m (1.64 ft)

3.6 mm: 0.7 m (2.30 ft)
DORI Distance Lens Detect Observe Recognize Identify
2.8 mm 41.4 m

(135.83 ft)

 16.5 m

(42.13 ft)

 8.3 m

(27.23 ft)

 4.1 m

(13.45 ft)
3.6 mm 50.9 m

(166.99 ft)

 20.3 m

(66.60 ft)

 10.2 m

(33.46 ft)

 5.1 m

(16.73 ft)
Video
Video Frame Rate CVI:

PAL: 1080p@25 fps;

NTSC: 1080p@30 fps;

AHD:

PAL: 1080p@25 fps;

NTSC: 1080p@30 fps;

TVI:

PAL: 1080p@25 fps;

NTSC: 1080p@30 fps;

CVBS:

PAL: 960 × 576H;

NTSC: 960 × 480H
Resolution 1080p (1920 × 1080); 960H (960 × 576/960 × 480)
Day/Night Auto(ICR)/Color/B/W
BLC BLC; HLC; DWDR
WDR DWDR
White Balance Auto;Manual
Gain Control Auto;Manual
Noise Reduction 3D NR
Illumination Mode Smart IR&WL; WL Mode; IR Mode
Mirror Yes
Privacy Masking Off/On (8 areas, rectangle)
Certification
Certifications CE-LVD: EN 62368-1;

CE-EMC: EN 55032; EN 55035
Port
Video Output Video output choices of CVI/TVI/AHD/CVBS by one BNC port
Audio Input One channel built-in Mic
Power
Power Supply 12 VDC ± 30% (It is recommended to use a power adapter to supply the power for one camera)
Power Consumption Max 6.1 W (12 V DC, LED on)
Environment
Operating Temperature –40 °C to +60 °C (–40 °F to +140 °F)
Operating Humidity <95% (RH), non-condensing
Storage Temperature –40 °C to +60 °C (–40 °F to +140 °F)
Storage Humidity <95% (RH), non-condensing
Protection IP66
Anti-corrosion Level Basic Protection
Structure
Casing Material Plastic
Product Dimensions 92.9 mm × 91.3 mm × 130 mm (3.66″ × 3.59″ × 5.12″)
Net Weight 0.39 kg (0.86 lb)
Gross Weight 0.64 kg (1.41 lb)
Installation Wall mount; ceiling mount; vertical pole mount
