| Camera | |
|---|---|
| Image Sensor | 2 MP CMOS |
| Max. Resolution | 1920 × 1080 |
| Scanning System | Progressive |
| Electronic Shutter Speed | PAL: 1/25 s–1/100,000 s NTSC: 1/30 s–1/100,000 s |
| Min. Illumination | 0.01 [email protected] (Color, 30 IRE) 0.001 [email protected] (B/W, 30 IRE) 0 lux (Illuminator on) |
| S/N Ratio | >65 dB |
| Illumination Distance | IR: 50 m Warm light: 50 m |
| Illuminator Control | Auto / Manual |
| Illuminator Number | 4 (Multi-core light) |
| Lens | |
| Lens Type | Fixed-focal |
| Auto Focus | No |
| Lens Mount | M12 |
| Focal Length | 2.8 mm / 6 mm |
| Max. Aperture | F2.0 |
| Field of View | 2.8 mm: H 109° / V 59.6° / D 130.4° 6 mm: H 47.2° / V 26.2° / D 54.5° |
| Iris Control | Fixed |
| Close Focus Distance | 2.8 mm: 0.5 m 6 mm: 2.3 m |
| DORI Distance | |
| 2.8 mm Lens | Detect: 41.4 m / Observe: 16.5 m / Recognize: 8.3 m / Identify: 4.1 m |
| 6 mm Lens | Detect: 95.1 m / Observe: 38 m / Recognize: 19 m / Identify: 9.5 m |
| Video | |
| Video Frame Rate | CVI / AHD / TVI: PAL 1080p@25 fps; NTSC 1080p@30 fps CVBS: PAL 960H; NTSC 960H |
| Resolution | 1080p (1920 × 1080); 960H |
| Day/Night | Auto (ICR) / Color / B/W |
| BLC | BLC / HLC / DWDR |
| WDR | DWDR |
| White Balance | Auto / Area white balance |
| Gain Control | Auto / Manual |
| Noise Reduction | 3D NR |
| Illumination Mode | Smart IR & WL / WL Mode / IR Mode |
| Defog | Electronic defog |
| Digital Zoom | 6× |
| Mirror | Yes |
| Privacy Masking | 8 rectangular areas |
| PT | |
| Pan/Tilt Range | Pan: 0°–355° Tilt: 0°–90° |
| Preset | 80 |
| Certification | |
| Certifications | CE-LVD: EN 62368-1 CE-EMC: EN 55032; EN 55035 |
| Audio | |
| Built-in Mic | Yes |
| Camera Audio | CVI / TVI |
| Port | |
| Video Output | CVI / TVI / AHD / CVBS via 1 BNC port |
| Power | |
| Power Supply | 12 VDC ±30% |
| Power Consumption | Max. 5.1 W |
| Environment | |
| Operating Temperature | –40 °C to +60 °C |
| Operating Humidity | <95% RH, non-condensing |
| Storage Temperature | –40 °C to +60 °C |
| Storage Humidity | <95% RH, non-condensing |
| Protection | IP66 |
| Anti-corrosion Level | Basic Protection |
| Structure | |
| Casing Material | Plastic |
| Product Dimensions | Φ110 × 150 mm |
| Net Weight | 0.46 kg |
| Gross Weight | 0.65 kg |
| Installation | Wall mount / Ceiling mount / Vertical pole mount |

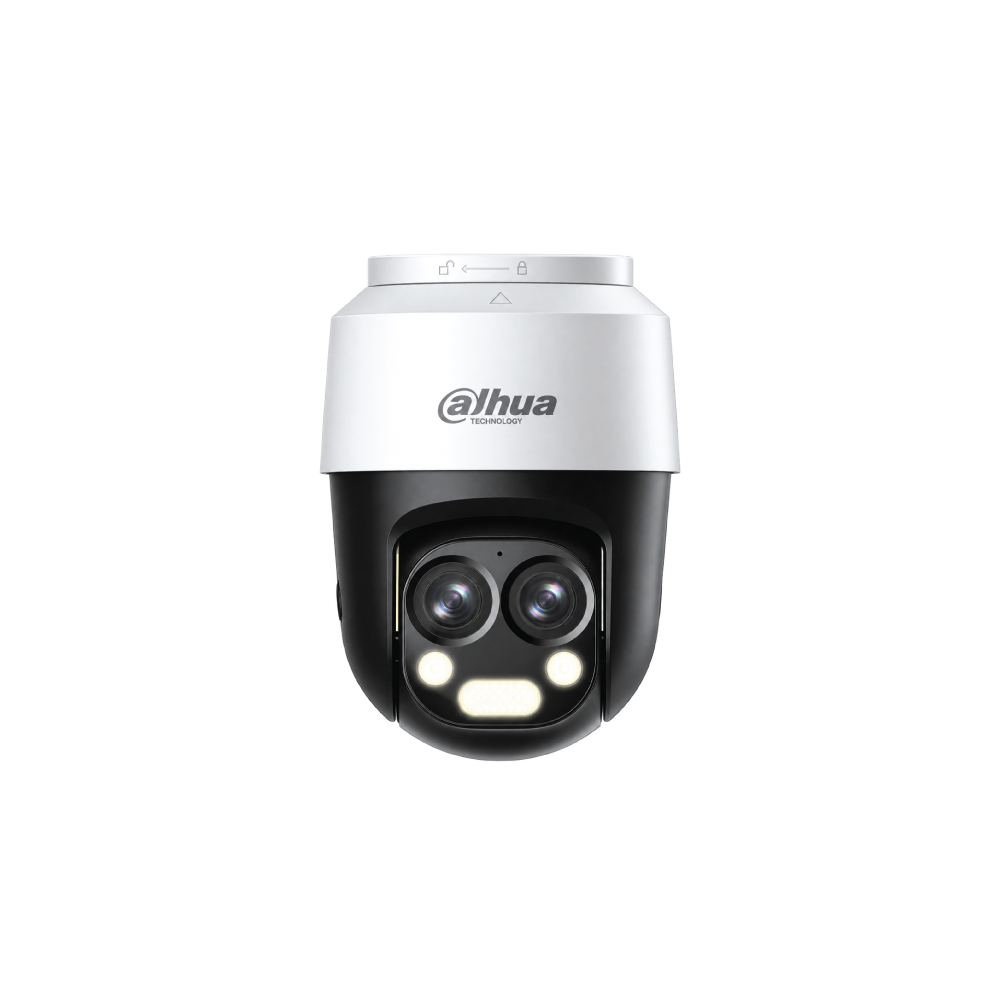

HAC-PT1200B-IL-A-E2Z
High-Quality Imaging with 1080P Resolution
Smart Dual Light: Built-in IR and LED Lights with 3 Illumination Modes Supported
50m Illumination Distance for Superior Camera Image Quality
PT：Greater Flexibility with Pan & Tilt Function.
Built-In Mic : Enhances Video Assistance with Audio Technology
3DNR & DWDR & Super Adapt Ensures Clear Details in Strong Backlight Conditions
Time-saving Installation with Quick-to-install Structure
