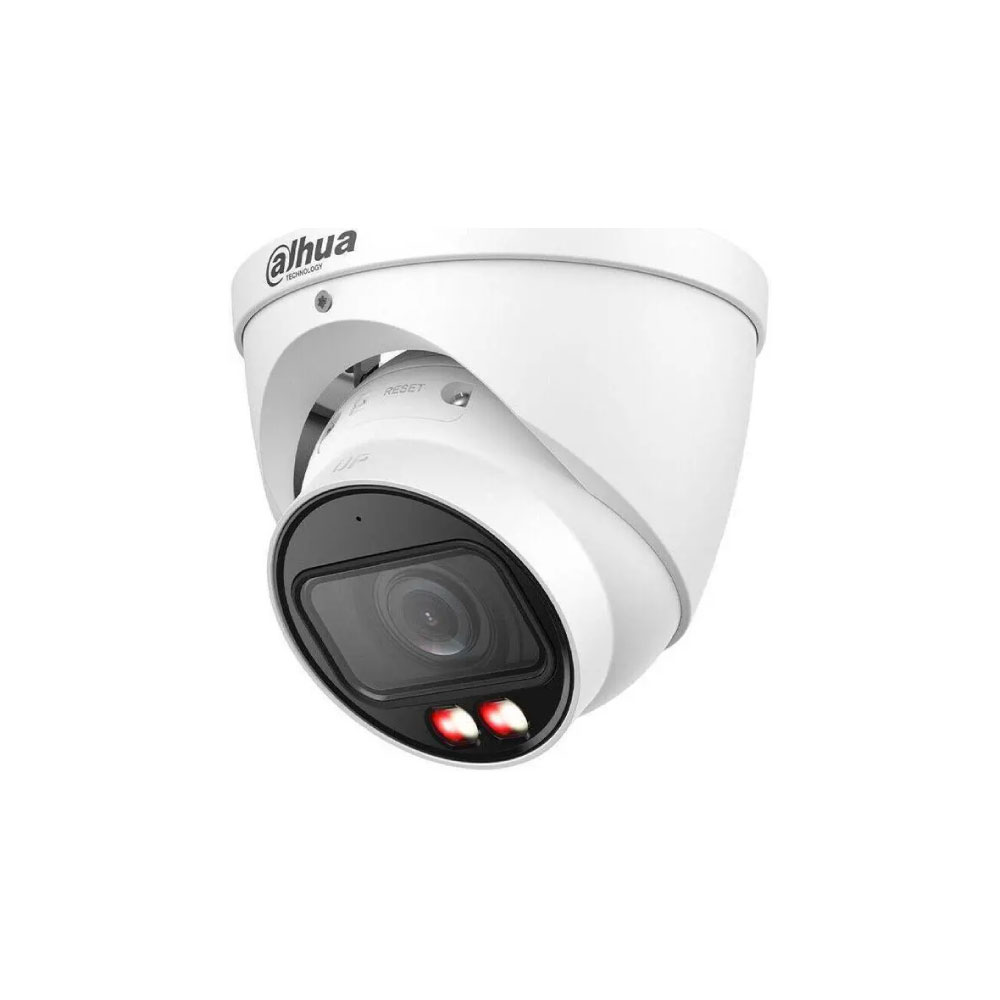

IPC-HDW2449T-ZS-IL

4 Mpx – Image Sensor : 1/2.9” – Objectif : Fixe 2.7~13.5mm – IR 30m – IP67- Bulit in Mic
Micro SD card memory 256GB – Up to 40 m (IR); Up to 40 m (Warm light) – WDR (120dB)

, ,
Camera
Image Sensor 1/2.9″ CMOS
Max. Resolution 2688 (H) × 1520 (V)
ROM 128 MB
RAM 128 MB
Scanning System Progressive
Electronic Shutter Speed Auto/Manual 1/3 s-1/100,000 s
Min. Illumination 0.006 [email protected] (Color, 30 IRE) 0.0006 [email protected] (B/W, 30 IRE) 0 lux (Illuminator on)
S/N Ratio ＞56 dB
Illumination Distance Up to 40 m (131.23 ft) (IR) Up to 40 m (131.23 ft) (Warm light)
Illuminator On/Off Control Auto;Manual
Illuminator Number 2 (Multi-core (IR + warm) light)
Angle Adjustment Pan: 0°-360° Tilt: 0°-78° Rotation: 0°-360°
Lens
Lens Type Motorized vari-focal
Lens Mount φ14
Focal Length 2.7 mm-13.5 mm
Max. Aperture F1.5
Field of View H: 97°-28°; V: 52°-16°; D: 117°-32°
Iris Control Fixed
Close Focus Distance 0.8 m (2.62 ft)
DORI Distance
Lens Detect Observe Recognize Identify
W 64.0 m( 209.97 ft) 25.6 m( 83.99 ft) 12.8 m( 41.99 ft) 6.4 m ( 20.99 ft)
T 210.0 m( 688.97 ft) 84.0 m( 275.59 ft) 42.0 m( 137.79 ft) 21.0 m ( 68.90 ft)
*DORI (Detect, Observe, Recognize, Identify) is a standard system (EN-62676-4) for defining the ability of a person viewing the video to distinguish persons or objects within a covered area. The numbers in this table do not reflect intelligent function distances. For intelligent function distances, refer to installation and commissioning manual/project design tool.
Intelligence
IVS (Perimeter Protection) Intrusion, tripwire (the two functions support the classification and accurate detection of vehicle and human)
SMD SMD Plus
Smart Search Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos
Video
Video Compression H.265; H.264; H.264H; H.264B; MJPEG (Only supported by the sub stream)
Smart Codec Smart H.265+; Smart H.264+
Video Frame Rate Main stream: 2688 × 1520@(1-20 fps )/2560 × 1440@ (1-25/30 fps) sub stream: 704 × 576@(1-25 fps)/704 × 480@(1-30 fps) *The values above are the max. frame rates of each stream; for multiple streams, the values will be subjected to the total encoding capacity.
Streaming Capability 2 streams
Resolution 4M (2688 × 1520/2560 × 1440); 3M (2304 × 1296); 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240)
Bit Rate Control VBR;CBR
Video Bit Rate H.264: 32 kbps-6144 kbps; H.265: 12 kbps-6144 kbps
Day/Night Auto(ICR)/Color/B/W
BLC Yes
HLC Yes
WDR 120 dB
White Balance Auto; natural; street lamp; outdoor; manual; regional custom
Gain Control Auto/Manual
Noise Reduction 3D NR
Motion Detection OFF/ON (4 areas, rectangular)
Region of Interest (RoI) Yes (4 areas)
Smart Illumination Yes
Smart Dual Light Yes
Image Rotation 0°/90°/180°/270° (Support 90°/270° with 2688 × 1520 resolution and lower)
Mirror Yes
Privacy Masking 4 areas
Audio
Built-in MIC Yes, built-in Mic
Audio Compression G.711a; G.711Mu; G.726; PCM
Alarm
Alarm Event No SD card; SD card full; SD card error; network disconnection; IP conflict; illegal access; motion detection; video tampering; tripwire; intrusion; audio detection; voltage detection; defocus detection; SMD; security exception
Network
Network Port RJ-45 (10/100 Base-T)
Network Protocol IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; NTP; Multicast; ICMP; IGMP; P2P
Interoperability ONVIF (Profile S & Profile T & Profile G); CGI
User/Host 6 (Total bandwidth: 36 M)
Storage FTP; SFTP; Micro SD card (support max. 256 GB)
Browser IE Chrome Firefox
Management Software Smart PSS Lite; DSS; DMSS; DoLynk Care
Mobile Client iOS;Android
Security Digest;WSSE;Account lockout;Security logs;IP/MAC filtering;Generation and importing of X.509 certification;syslog;HTTPS;802.1x;Trusted boot;Trusted execution;Trusted upgrade
Certification
Certifications CE-LVD: EN62368-1; CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU
Power
Power Supply 12 VDC; PoE (802.3af)
Power Consumption Basic: 2.3 W (12 VDC), 2.8 W (PoE); Max.: 7.8 W (12 VDC), 9.3 W (PoE) (H.265 + intelligence on+ WDR + warm light intensity)
Environment
Operating Temperature -30 °C to +60 °C (-22 °F to +140 °F)
Operating Humidity ≤95% (RH), non-condensing
Storage Temperature -30 °C to +60 °C (-22 °F to +140 °F)
Storage Humidity ≤95% (RH), non-condensing
Protection IP67
Structure
Casing Material Metal
Product Dimensions 108.3 mm × Φ122.0 mm (4.26″ × Φ4.80″)
Net Weight 0.69 kg (1.52 lb)
Gross Weight 0.86 kg (1.90 lb)
