Material:
1.Housing: PC, UL 94V-0
2.IDC:
2-1. Housing: PC, UL 94V-0.
2-2. Contact: Phosphor Bronze with Nickel plated.
3. IDC CAP: PC, UL 94V-0.
4. RJ45 jack contact:
4-1. Contact Bracket: PC, UL 94V-0
4-2. Contact: phosphor Bronze, with 3U-50U Gold plated on plug contact area.
Performance:
A.T568A&T568B wiring sticker on ICD.
B.Insertion force:20N max
C.Retention Strength: 7KG between jack and plug.
D.Operating temperature: -10°to 60°
E.Life(mating cycles):
Jack: 750 cycles min.
IDC: 300 cycles min, suitable for 23-26AWG wire

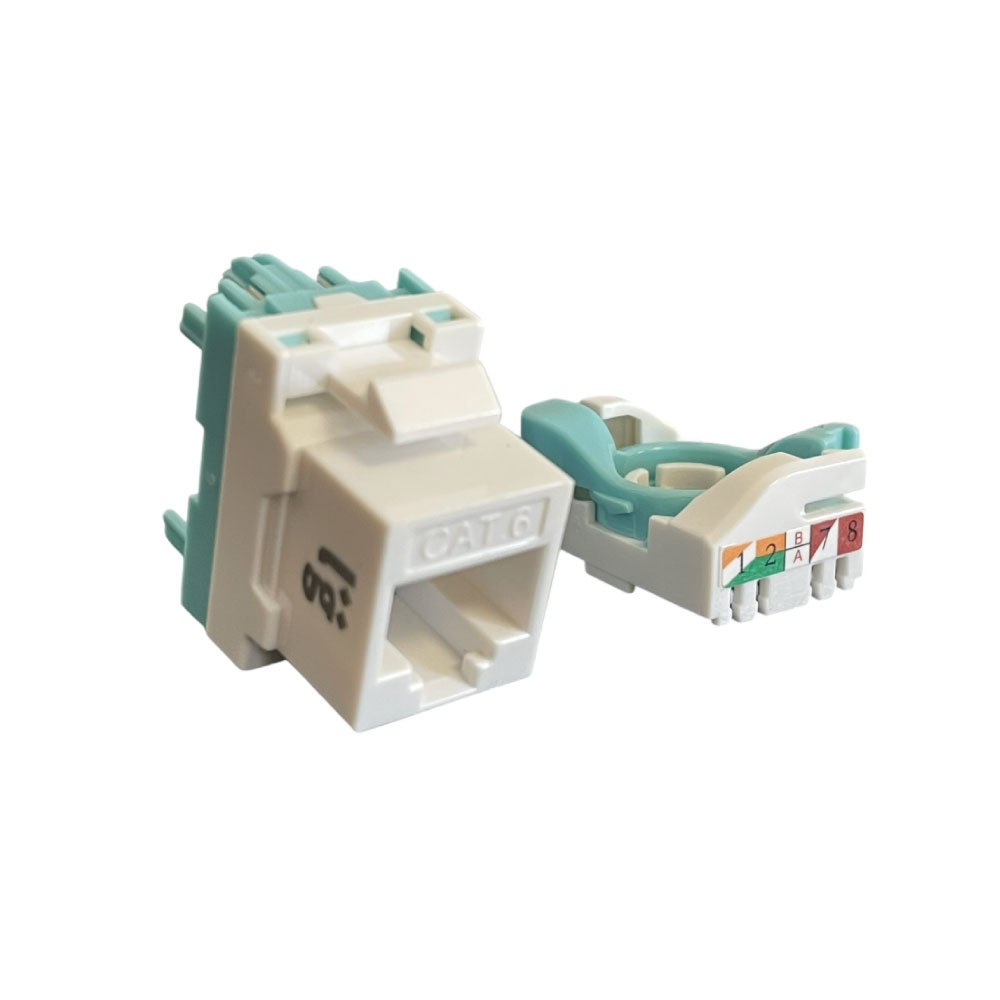

LG-KJ-1013-C6
CAT6A/CAT6 TOOLLESS KEYSTONE JACK
| color | Green, Blue |
|---|
