| System | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Main Processor | Industrial-grade processor | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Operating System | Embedded Linux | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Operating Interface | Web, Local GUI | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| AI | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| AI by Recorder | SMD | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| AI by Camera | Perimeter protection; SMD | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Perimeter Protection | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Perimeter Performance of AI by Camera (Number of Channels) | All channels (4 targets/s) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| SMD Plus | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| SMD Plus by Recorder | 4 channels: Secondary filtering for human and motor vehicle, reducing false alarms caused by leaves, rain and lighting condition change | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| SMD Plus by Camera | All channels (8 targets/s) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Audio and Video | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Access Channel | 4 channels | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Network Bandwidth | 80 Mbps incoming, 80 Mbps recording and 60 Mbps outgoing | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Resolution | 12 MP;8 MP;6 MP;5 MP;4 MP;3 MP;1080p;720p;960p;D1;CIF;QCIF | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Decoding Capability | AI disabled: 1-channel 12 MP@30 fps; 1-channel 8 MP@30 fps; 2-channel 6 MP@30 fps; 2-channel 5 MP@30 fps; 3-channel 4 MP@30 fps; 6-channel 1080p@30 fps
AI enabled: 1-channel 8 MP@30 fps; 1-channel 6 MP@30 fps; 1-channel 5 MP@30 fps; 2-channel 4 MP@30 fps; 4-channel 1080p@30 fps |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Video Output | 1 HDMI, 1 VGA
HDMI: 3840 × 2160, 1920 × 1080, 1280 × 1024, 1280 × 720 VGA: 1920 × 1080, 1280 × 1024, 1280 × 720 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Multi-screen Display | 1/4 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Third-party Camera Access | ONVIF | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Compression Standard | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Video Compression | Smart H.265+; H.265; Smart H.264+; H.264; MJPEG | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Audio Compression | G.711a; G.711u; PCM; G726; | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Network | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Network Protocol | HTTP; HTTPS; TCP/IP; IPv4; IPv6; UDP; NTP; DHCP; DNS; SMTP; IP Filter; DDNS; IP Search (Supports IP camera, DVR, NVS, etc.); P2P; Auto Registration | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Mobile Phone Access | iOS; Android | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Interoperability | ONVIF 23.12(Profile T; Profile S; Profile G); CGI; SDK | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Browser | Chrome; IE; Safari; Edge; Firefox | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Recording Playback | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Multi-channel Playback | Up to 4 channels | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Record Mode | General, motion detection; intelligent; alarm | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Backup Method | USB device and network | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Playback Mode | Instant playback; general playback; event playback; tag playback; smart playback | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Alarm | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| General Alarm | Motion detection; camera external alarm; PIR alarm | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Anomaly Alarm | Error (no disk, disk error, low space, low quota space; network disconnection; IP conflict; MAC conflict); video loss; video tampering; camera offline | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Intelligent Alarm | Perimeter protection; SMD Plus | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Alarm Linkage | Recording; snapshot; buzzer; log; preset; email; tour | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Port | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Audio Input | 1-channel RCA | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Audio Output | 1-channel RCA | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Alarm Input | NA (2 channels are optional) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Alarm Output | NA (1-channel 12 V 1 A output is optional) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Disk Interface | 1 SATA port. Each disk can contain up to 20 TB. this limit varies depending on the environment temperature. | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| USB | 2 (1 front USB 2.0 port, 1 rear USB 2.0 port) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| HDMI | 1 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| VGA | 1 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Network Port | 1 (10/100 Mbps Ethernet port, RJ-45) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| General | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Power Supply | 12 VDC, 1.5 A | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Power Consumption | <10 W (without HDD) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Net Weight | 0.85 kg (1.87 lb) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Gross Weight | 1.39 kg (3.06 lb) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Product Dimensions | 260.0 mm × 232.5 mm × 47.6 mm(10.24″ × 9.15″ × 1.87″) (W × D × H) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Packaging Dimensions | 334.0 mm × 89.0 mm × 314.0 mm(13.15″ × 3.50″ × 12.36″)(W × D × H) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Operating Temperature | -10 °C to +55 °C (14 °F to +131 °F) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Storage Temperature | -20 °C to +60 °C (-4 °F to +140 °F) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Operating Humidity | 10%-93% (RH), non-condensing | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Certifications | CE-LVD: IEC 62368-1:2014
CE-EMC: EN IEC 61000-3-2:2019, EN 61000-3-3:2013+A1:2019, EN 55032:2015+A11:2020, EN 55035:2017+A11:2020, EN 55024:2010+A1:2015, EN 50130-4:2011+A1:2014 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||

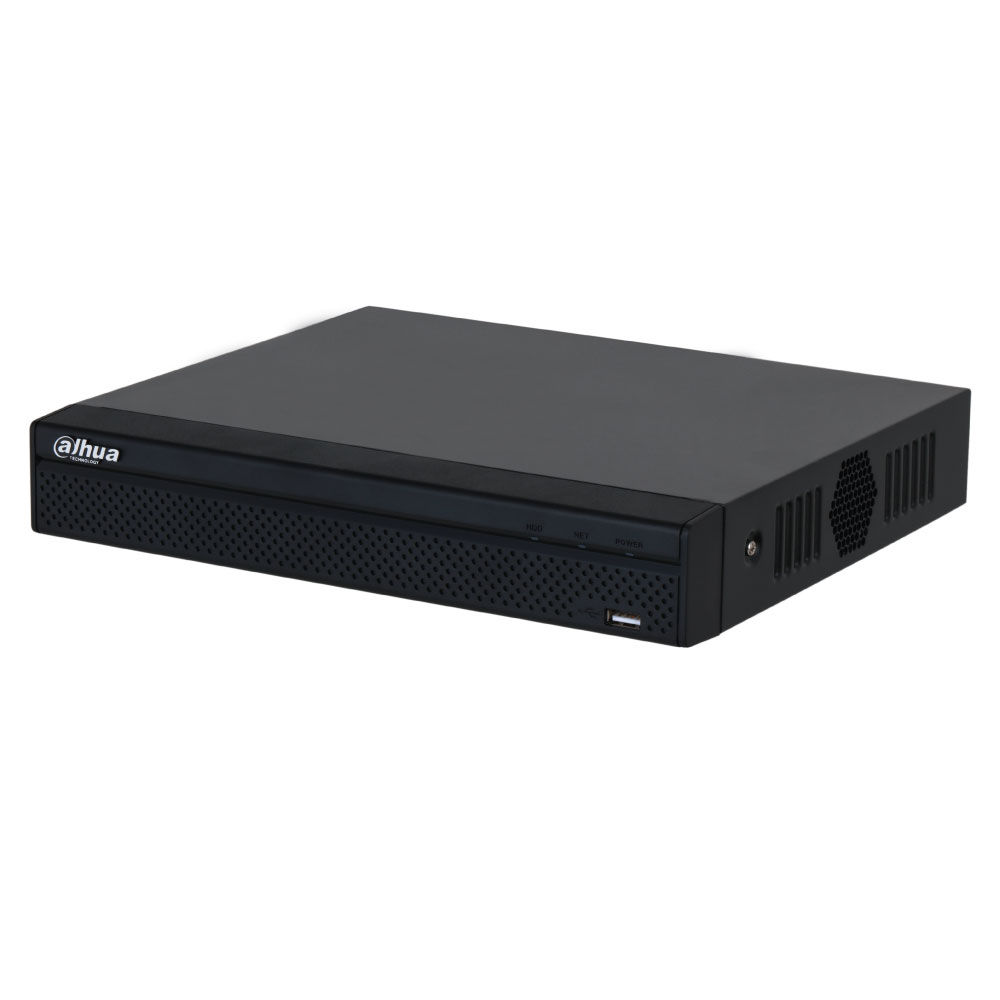

NVR2104HS-4KS3
Vidéo Input: 4 channels
Audio: 1 ch (I), 1 ch (O), RCA
Codec decoding: Smart H.265+; Smart H.264+; H.265; H.264
Display:1 HDMI, 1 VGA
Record Rate: 80 Mbps
Bit Rate Per Channel: 16Kbps~20Mbps
HDD: 1 SATA III port, up to 20TB + 2 USB
Network: RJ-45 port (10/100M)
Resolution (realtime preview): Up to 12Mpx
