· New 4.0 user interface
· P2P remote surveillance, video play on mobile device
· 4–ch@1080P(30FPS), self-adaptive decoding capability
· Support for mainstream cameras of ONVIF and RTSP protocol
· Smart H.265+/Smart H.264+/H.265/H.264
· VGA/HDMI simultaneous video output, maximum resolution of HDMI is 1080P
· Remote configuration and management of IPCs, such as setting parameters, acquiring information and upgrading IPCs of the same model in batches
· DHCP(Dynamic Host Configuration Protocol), HTTP(Hypertext Transfer Protocol), NTP(Network Time Protocol) and DDNS(Dynamic Domain Name System)

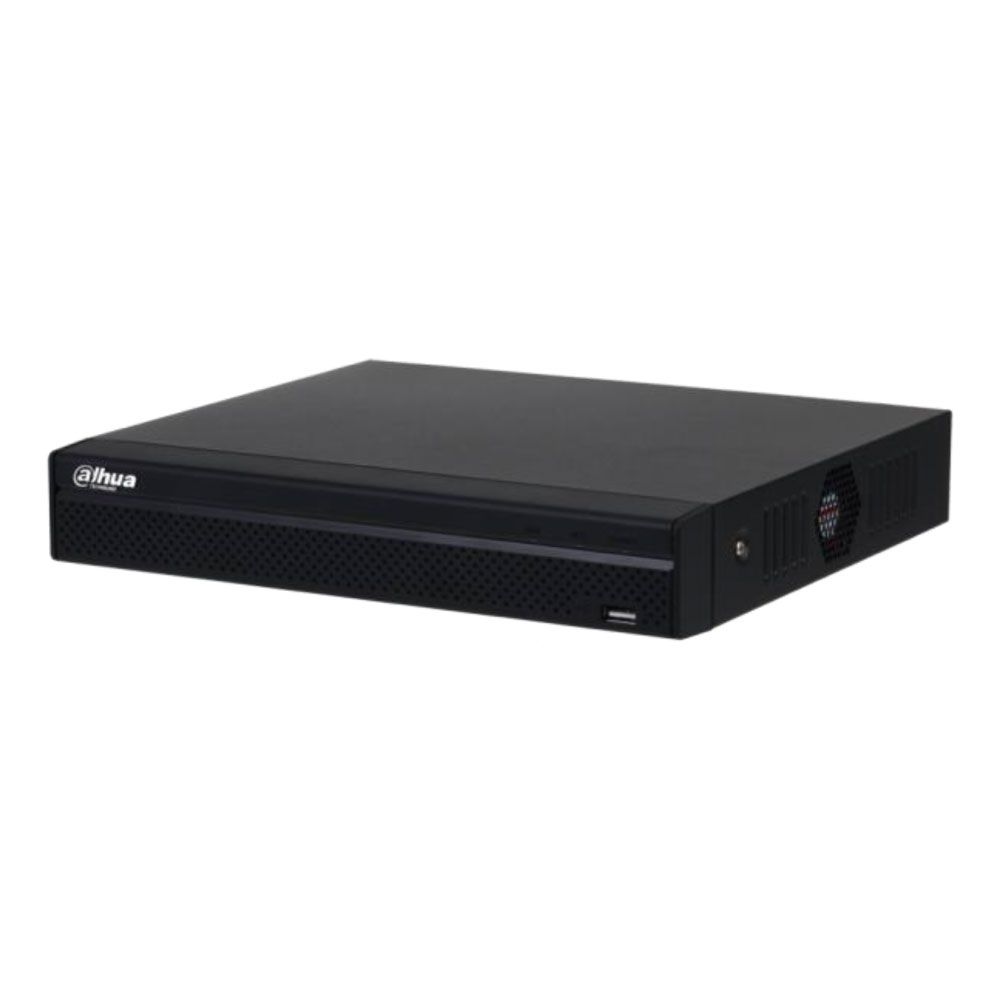

NVR1108HS-8P-S3/H
Vidéo Input:8 channels
Audio: 1 ch(I),1 ch(O),RCA
Codec decoding: Smart H.265+; Smart H.264+; H.265; H.264
Display: 1 HDMI, 1 VGA
Record Rate: 80 Mbps
Bit Rate Per Channel: 16Kbps~20Mbps
HDD:1 SATA III port, up to 8TB + 2 USB
Network: RJ-45 port (10/100M)
Resolution(realtime preview): Up to 8Mpx
Ports PoE: 8
| Main Processor | Industrial-grade embedded processor |
|---|---|
| Operating System | Embedded Linux |
| Access Channel | 8 channels |
Produits similaires
-
1HDD
NVR1108HS-S3/H
Vidéo Input: 8 channels
Audio: 1 ch (I), 1 ch (O), RCA
Codec decoding: Smart H.265+; Smart H.264+
Display: 1 HDMI, 1 VGA
Record Rate: 80 Mbps
Bit Rate Per Channel: 16Kbps~20Mbps
HDD: 1 SATA III port, up to 8TB + 2 USB
Network: RJ-45 port (10/100M)
Resolution(realtime preview): Up to 8Mpx -
1HDD
NVR1104HS-P-S3/H
Vidéo Input: 4 channels
Audio: 1 ch (I), 1 ch (O), RCA
Codec decoding: Smart H.265+; Smart H.264+; H.265; H.264
Display: 1 HDMI, 1 VGA
Record Rate: 80 Mbps
Bit Rate Per Channel: 16Kbps~20Mbps
HDD: 1 SATA III port, up to 8TB + 2 USB
Network: RJ-45 port (10/100M)
Resolution (realtime preview):Up to 8Mpx
Ports PoE: 4
