· Power Supply12V DC 3A

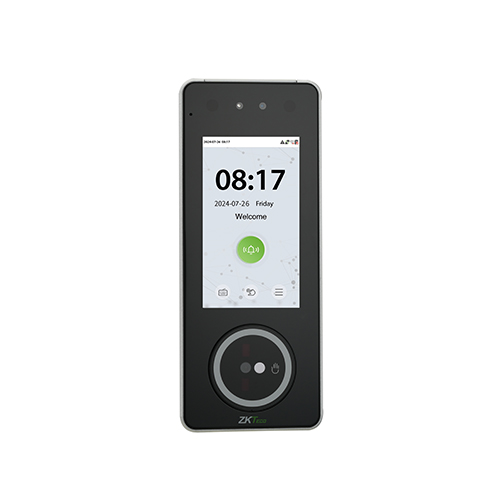

| · Model | SpeedPalm-V5L |
| · Display | 5″@ ISP Color LCD Touch Screen (720*1280) |
| · Camera | WDR Low Light Camera @ 2MP |
| · Operation System | Linux |
| · Hardware | CPU: 1GHz Dual Core RAM: 1G; ROM: 8G Supplement Light: Yes |
| · Visual Indicator | Steady Green LED: Normal Status Steady White LED: Authentication in Progress Steady Red LED: Error/ Fault Steady Orange LED: Object nearby detected |
| · Authentication Method | Face / Palm / Card / Password (Virtual Keypad) |
| · Face Template Capacity | 10,000 |
| · Palm Template Capacity | 5,000 |
| · Card Capacity | 10,000 |
| · Transaction Capacity | 200,000 |
| · Biometric Verification Speed | less than 1 sec (Facial Authentication) less than 0.35 sec (Palm Authentication) |
| · Touchless Biometric Recognition Distance | 1cm to 100cm (Facial Authentication) 5cm to 15cm (Palm Authentication) |
| · False Acceptance Rate (FAR) % | FAR ≤ 0.01% (Visible Light Facial Authentication) FAR ≤ 0.01% (Palm Authentication) |
| · False Rejection Rate (FRR) % | FRR ≤ 0.02% ( Visible Light Facial Authentication) FRR ≤ 0.17% (Palm Authentication) |
| · Biometric Algorithm | ZKFace V3.9.3 & PalmElite3.2.3 |
| · Card Type | ID Card@125 kHz (Standard) IC Card@13.56 MHz (Optional) |
| · Communication | TCP/IP*1 Wi-Fi (IEEE 802.1 a/b/g/n/ac) @2.4GHz ; 5GHz Wiegand (Input or Output)*1 RS485: ZKTeco RS485*1 Aux Inputs *1, Electric Lock*1, Door Sensor*1, Exit Button*1, Alarm *1 |
| · Standard Functions | ADMS, T9 Input, 14-digit User ID, Access Levels, Groups, Holidays, Antipassback, Record Query, Schedule Bell, Tamper Switch Alarm, Mask Detection ,Multiple Verification Methods, SIP 2.0 Protocol, AC Push and TA Push Protocol Switch |
| · Operating Temperature | -10°C to 45°C (14°F to 113°F) |
| · Operating Humidity | 10% to 90% RH (Non-condensing) |
| · Dimensions | 227.3 *92.3 * 24.5 (mm) (L*W*D) |
| · Gross Weight | 1.3 Kg |
| · Net Weight | 0.62 Kg |
| · Supported Software | Software: ZKBio CVAccess / ZKBio Time / ZKBio CVSecurity |
| · Installation | Wall-mount (Compatible with Asian Gang-box / Single Gang-Box) |
| · Housing Material | Aluminium Alloy |
| · Certifications | ISO14001, ISO9001, CE, FCC, RoHS |
