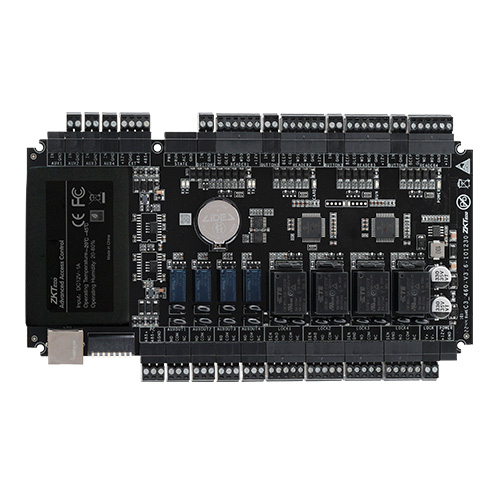

| · Model | C3-200 Plus |
| · Operation System | Linux OS |
| · Hardware | CPU: Single Core @ 1.0GHz RAM: 128MB; ROM: 256MB |
| · Authentication Method | Card / Password / QR Code |
| · Access Point Capacity | C3-100 Plus: 1 Access Point
C3-200 Plus: 2 Access Points C3-400 Plus: 4 Access Points |
| · Reader Capacity | |
| · IO Expansion Board Capacity | 8pcs EX0808 (RS-485 connection) |
| · User Capacity | 100,000 |
| · Card Capacity | 100,000 (1:N) (Standard) |
| · QR Code Capacity | 100,000 (Static QR Code / Dynamic QR Code) |
| · Transaction Capacity | 500,000 (Standard) |
| · Number of Inputs | |
| · Number of Outputs | C3-100 Plus: 1 * Form C Relay forLock, 1 * Form C Relay forAux Output or 64 (with 8pcs of EX0808 IO expansion board) C3-200 Plus: 2 * Form C Relay forLock, 2 * Form C Relay forAux Output or 64 (with 8pcs of EX0808 IO expansion board) C3-400 Plus: 4 * Form C Relay orLock, 4 * Form C Relay for Aux Output or 64 (with 8pcs of EX0808 IO expansion board) |
| · Max. Card Length | Supports up to 66 bits Card Length |
| · QR Code | QR code, PDF417, Data Matrix, MicroPDF417, Aztec scanning in third-party development projects.Dynamic QR codes on the ZKBio CVAccess mobile application. |
| · Communication | C3-100 Plus: TCP / IP * 1; RS-485: ZKTeco RS-485 / OSDP * 1; Wiegand (Input) * 2; USB: Type A (USB Drive Only) * 1; Aux Inputs * 1; Aux Outputs * 1; Electric Lock * 1; Door Sensor * 1; Exit Button * 1; Alarm * 1 C3-200 Plus: TCP / IP * 1; RS-485: ZKTeco RS-485 / OSDP * 1; Wiegand (Input) * 4; USB: Type A (USB Drive Only) * 1; Aux Inputs * 2; Aux Outputs * 2; Electric Lock * 2; Door Sensor * 2; Exit Button * 2; Alarm * 2 C3-400 Plus: TCP / IP * 1; RS-485: ZKTeco RS-485 / OSDP *1; Wiegand (Input) * 4; USB: Type A (USB Drive Only) * 1; Aux Inputs * 4; Aux Outputs * 4; Electric Lock * 4, Door Sensor * 4; Exit Button * 4; Alarm * 4 |
| · Standard Functions | Webserver, Upto 14-digit User ID, Access Levels, Access Groups, Holidays, Anti-passback, Anti-tailgating, Linkage, Global Linkage, Multiple Verification Methods |
| · Access Control Interface | Wiegand (Card Reader) RS-485 ( RS-485 Card Reader / QR Code Reader) |
| · Power Supply | 9.6V – 14.4V DC |
| · Operating Temperature | 0℃ to 45℃ |
| · Operating Humidity | 20% to 80% RH (Non-condensing) |
| · Dimensions (mm) | C3-100 Plus: 175 mm*99 mm*19.3 mm (L*W*H)
C3-200 Plus: 175 mm*99 mm*19.3 mm (L*W*H) C3-400 Plus: 215.88 mm*99.14 mm*19.3 mm(L*W*H) |
| · Gross Weight | C3-100 Plus: 0.263 Kg C3-200 Plus: 0.296 Kg C3-400 Plus: 0.357 Kg |
| · Net Weight | C3-100 Plus: 0.158 Kg C3-200 Plus: 0.190 Kg C3-400 Plus: 0.252 Kg |
| · Supported Software | ZKBio CVAccess |
| · Installation | Supported Wall-mount with Metal Enclosure (Optional) |
| · Enclosure (Optional) | C3-100 Plus / C3-200 Plus: Size: 350 mm*90 mm*300 mm (L*W*H); Material: SPCC steel; Power Supply Unit: input 110V~240V AC, output 12V 4A+1A DC; Backup Battery: Space reserved [Recommended Backup Battery size: 151 x 94 x 65 mm (L*W*H)] ; Gross Weight: 3.35Kg C3-400 Plus: Size: 350 mm*90 mm*300 mm (L*W*H); Material: SPCC steel; Power Supply Unit: input 110V~240V AC, output 12V 4A+1A DC; Backup Battery: Space reserved [Recommended Backup Battery size: 151 x 94 x 65 mm (L*W*H)]; Gross Weight: 3.56Kg |
| · Certifications | ISO14001, ISO9001, CE, FCC, RoHS |
| · Factory ID | C3-100 Plus: AC02-C11H-U10
C3-200 Plus: AC02-C12H-U10 C3-400 Plus: AC02-C14H-U10 |
