| Radio Design | 2.4 GHz Single-Band Dual-Stream | Transmission Protocol | IEEE 802.11b/g/n |
| Operating Band | 802.11b/g/n: 2.400～2.483GHz | Antenna | Directional antennas, 8 dBi |
| Polarization | Horizontal: 70°, Vertical: 70° | Bridging Distance | 500m (recommended) |
| Spatial Streams | 2×2, MU-MIMO | Memory/Flash | 64 MB/8 MB |
| Maximum Throughput | Up to 300 Mbps at 2.4 GHz | Max. Transmit Power | ≤100 mW(20 dBm) (adjustable) |
| IP Rating | IP55 | Lightning Protection | ±6 KV(Common Mode) |
| Installation | Wall-mounted/ Pole-mounted | Dimensions （D x W x H） | 165.5mm×68.7mm×42mm |
| Weight | 0.3 kg | Certification | CE |

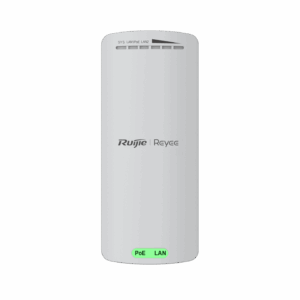

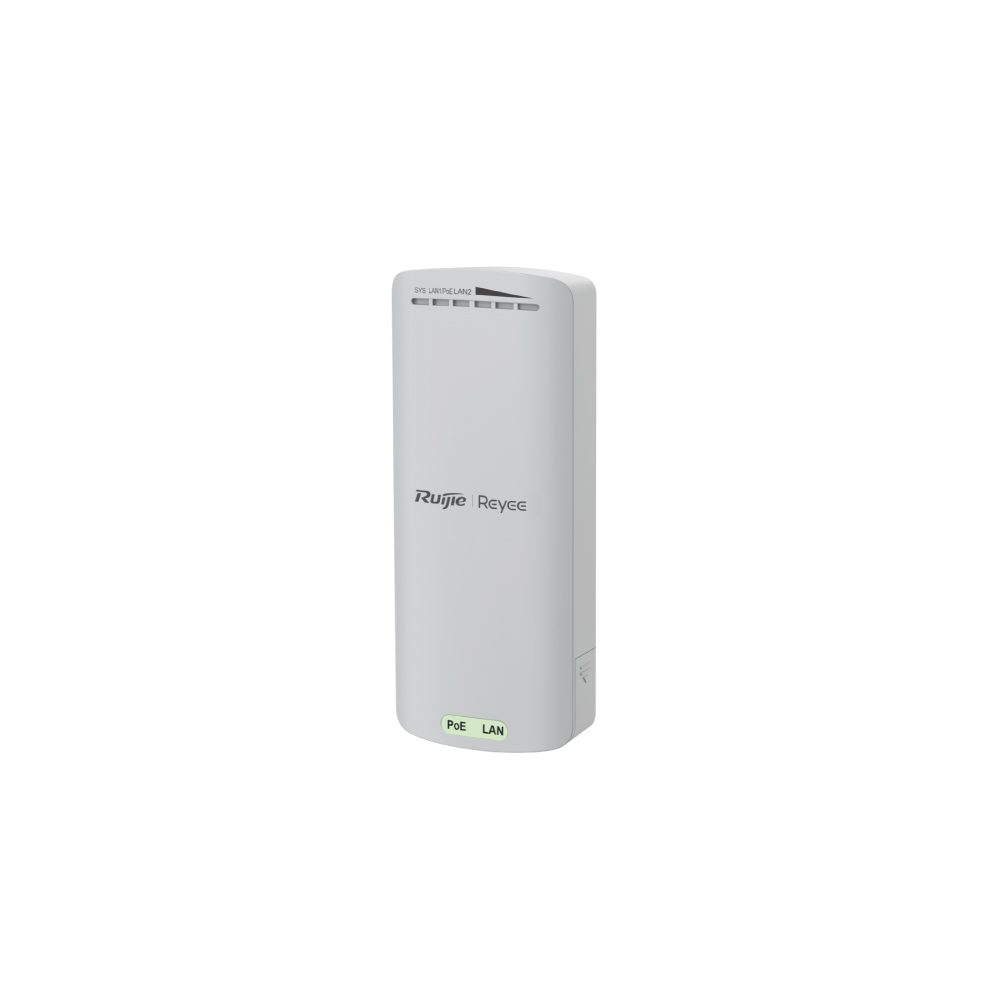

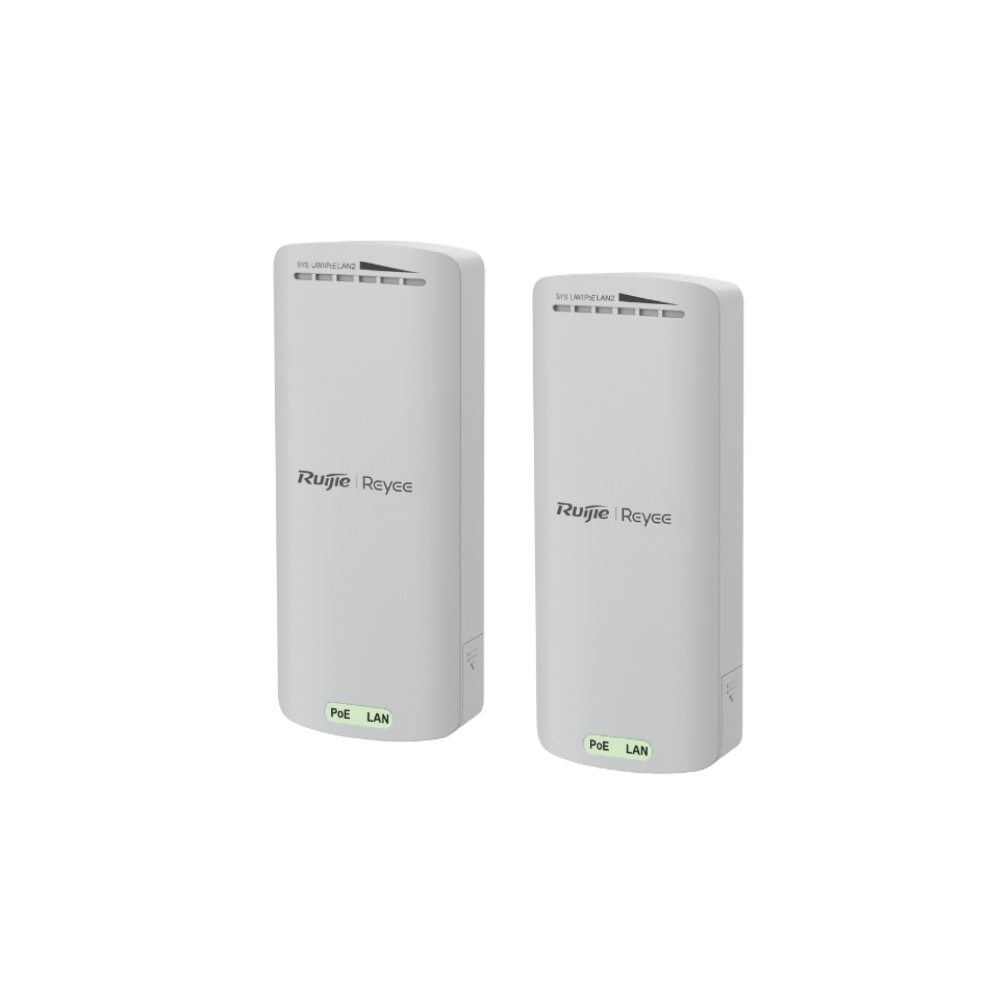

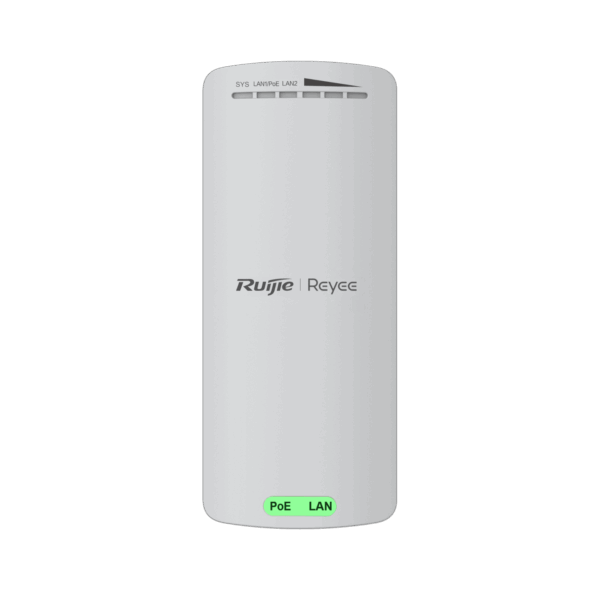

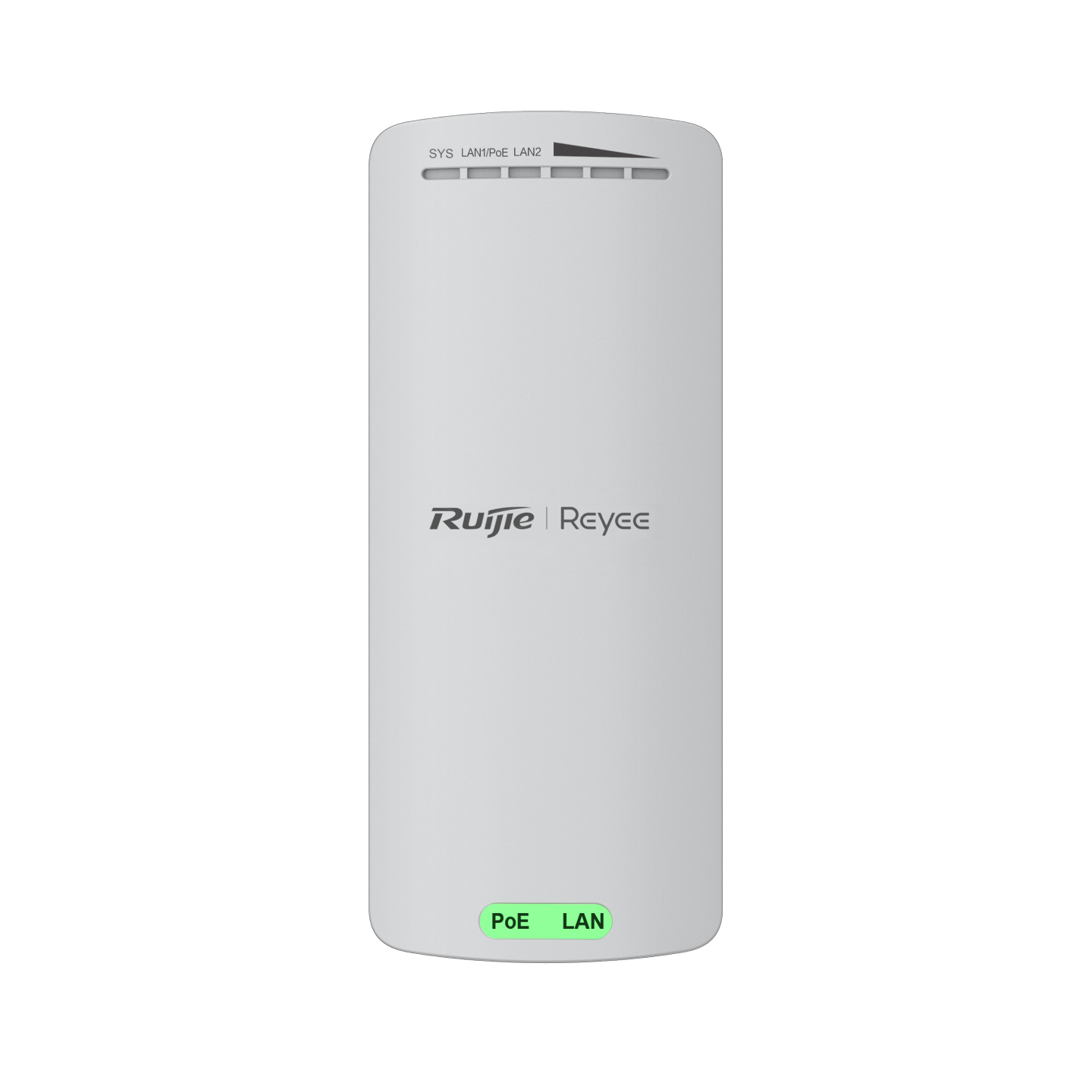

RG-EST100-E
Fréquence : 2,4 GHz (IEEE 802.11b/g/n)
Débit maximal : 300 Mbps
Antennes : 2×2 MIMO avec gain de 8 dBi
Portée sans fil : jusqu’à 500 mètres en mode Point-to-Point (PTP)
Modes de fonctionnement : Bridge (PTP)
Sécurité : WPA-PSK, WPA2-PSK, WPA/WPA2-PSK

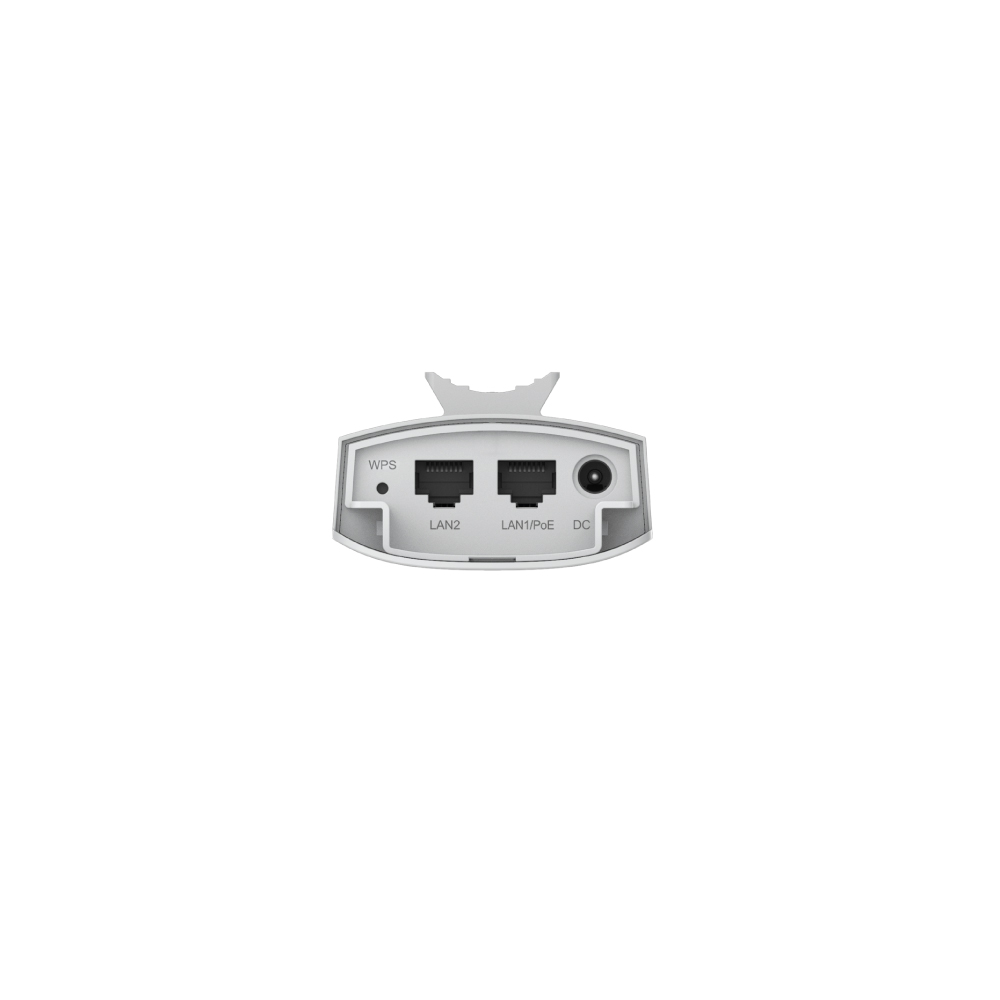

Ports LAN : 1 x 10/100Mb LAN 1 + PoE passif, 1 x 10/100Mb LAN 2
Alimentation : PoE passif 12 V DC ou adaptateur secteur 12 V DC
Température de fonctionnement : -30 °C à 60 °C
Indice de protection : IP55 (résistant aux intempéries)
Consommation maximale : 5 W
