| · Display | 5″ Touch Screen |
| · Face Capacity | 6,000 (Optional:10,000) |
| · Palm Capacity | 3,000 (Customized) |
| · Card Capacity | 10,000 |
| · Transaction Capacity | 200,000（Optional: 500k） |
| · Operation System | Linux |
| · Functions | ID Card, ADMS, DNS, T9 Input, DST, Camera, 9-digit User ID, Advance Access Control, Groups, Holidays, Anti-passback, Record Query, Tamper Switch Alarm, Bell Scheduling, POE (Optional, IEEE 802.3at-2009) |
| · Hardware | 1GHz Dual Core CPU / 1G RAM / 8G Flash / 2MP WDR Low Light Camera / Adjustable LED Supplement Lighting / Rain Cover (Optional) |
| · Communication | TCP / IP, Wi-Fi (Optional), Wiegand Input / Output, RS485* |
| · Access Control Interface | 3rd-party Electric Lock, Door Sensor, Exit Button, Alarm Output, Aux. Input |
| · Optional Card Module | IC / HID / iClass / Felica / Desfire EV1 / EV2 / Legic |
| · Facial Recognition Speed | ≤ 0.5s per face |
| · Biometrics Algorithm | ZKFace V3.9 & ArmaturaPalm (Customized) |
| · Ingress Protection Rating | IP66 |
| · Power Supply | Voltage: DC 12V Current: Max. 3A |
| · Operating Humidity | 10% to 90% |
| · Operating Temperature | -10°C to 50°C |
| · Dimension | 103.83 * 212.41 * 50.60 (mm) (W*H*D) |
| · Supported Software | ZKBio CVAccess |

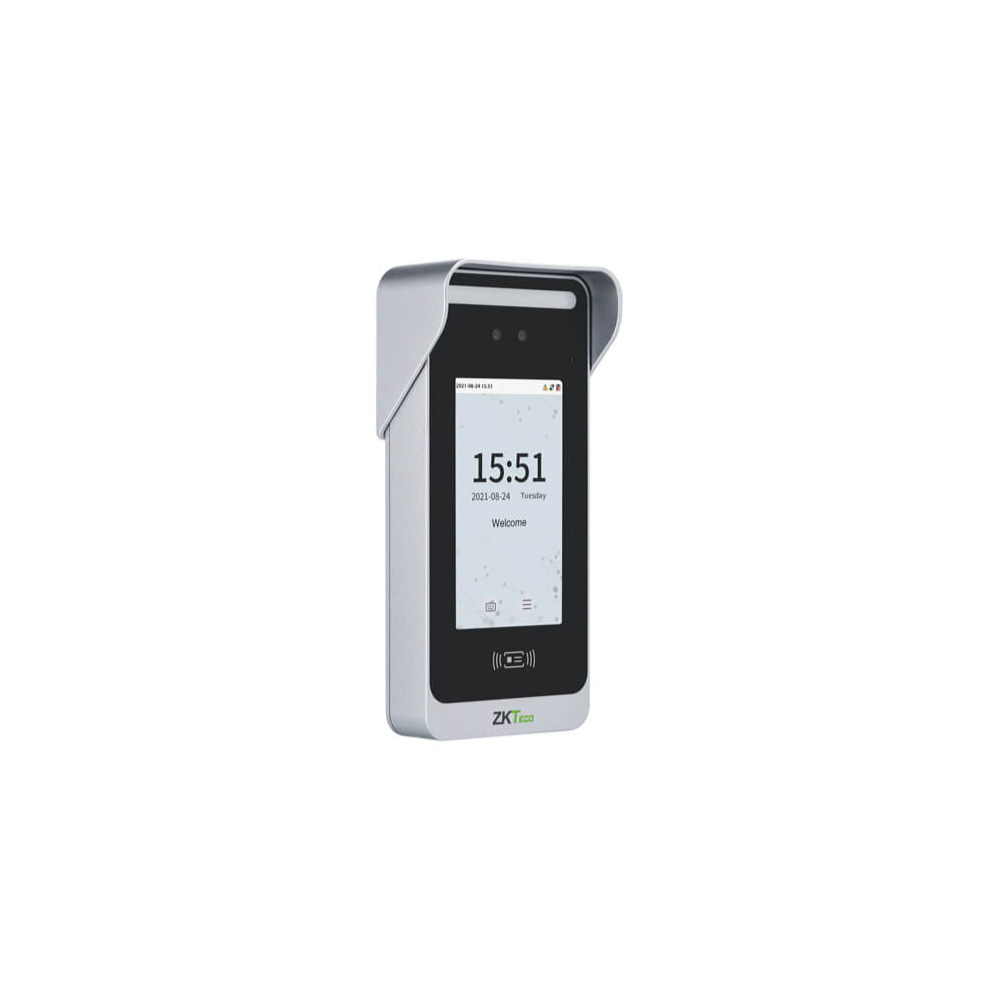

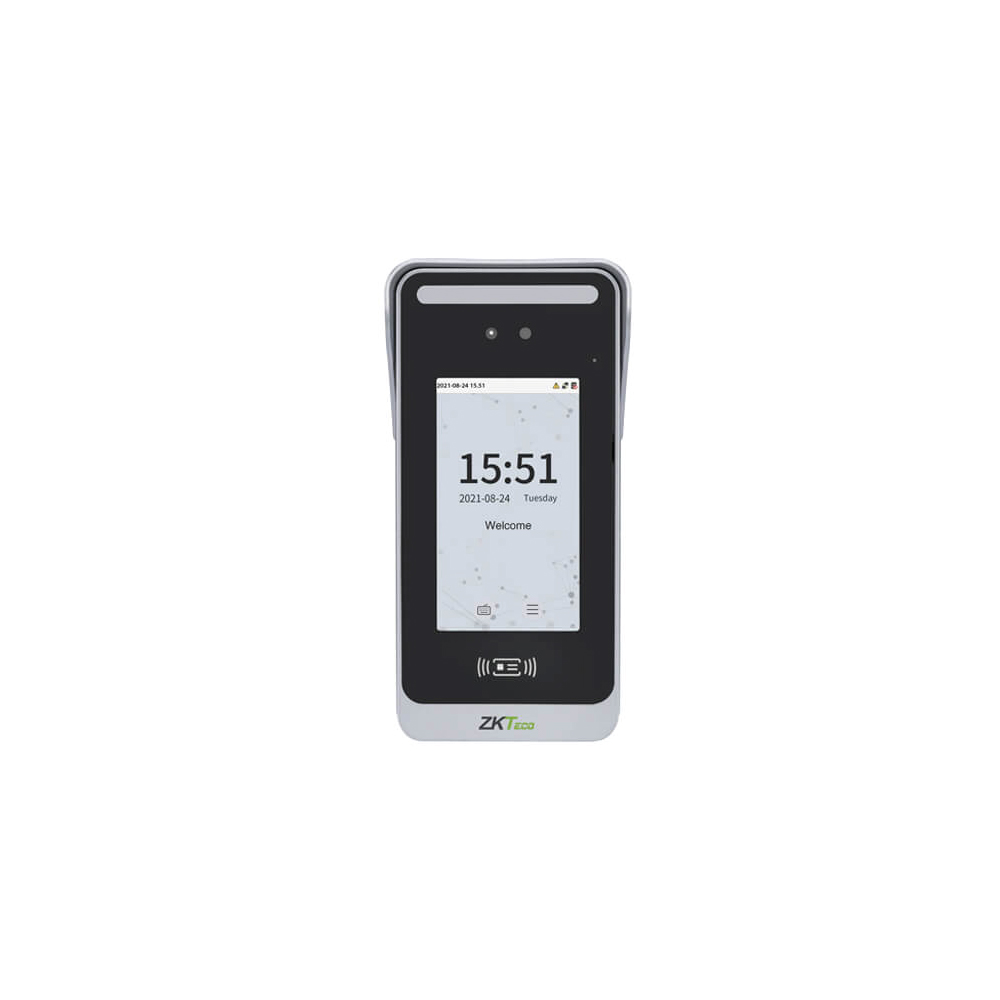

SpeedFace M4
Linux-Based Hybrid-Biometric
Access Control & Time and
Attendance Terminal
with Visible Light Facial &
Palm Recognition
Capacity Face: 6000, Palm :
3000, Card: 10000,
Transactions : 200000
Communication TCP/IP, WiFi,
Wiegand input/output,
RS485
Algorithms ZKFace V5.8
& ZKBio CVAccess
Related products
-
5MP
HAC-PT1509A-A-LED
120 dB true WDR, 3D NR
24/7 color imaging
Smart Area Lighting
Pan & Tilt
40 m illumination distance
Super Adapt
Built-in Mic
Quick-to-install structure saves installation time.
3.6 mm fixed lens (2.8 mm optional)
IP66, 12 VDC. -
Access Control
ZAC-N06-MRWT
• Waterproof IP68
• Ice-blue luminous digital Backlit keypad
• Metal case, anti-vandal
• Capacity:2000 users
• Three accesses: pin, card, pin+card
• WG26 output/ input
• Can connect with external doorbell -
New
ZAC-N05-MRW
• Waterproof IP68
• Ice-Blue luminous digital bcklight Button
• Metal case, anti-vandal
• Capacity:2000users
• Three accesses: pin, card, pin+card
• WG26output/ input -
New
ZAC-N03-MR
• Backlight keypad
• Metal case, anti-vandal
• Multi-function standalone access controller and reader
• WG26Input / output
• Capacity : 2000cards/codes
• Three accesses: card, pin, card+pin -
Wireless
RG-EST100-E
Fréquence : 2,4 GHz (IEEE 802.11b/g/n)
Débit maximal : 300 Mbps
Antennes : 2×2 MIMO avec gain de 8 dBi
Portée sans fil : jusqu’à 500 mètres en mode Point-to-Point (PTP)
Modes de fonctionnement : Bridge (PTP)
Sécurité : WPA-PSK, WPA2-PSK, WPA/WPA2-PSK
Ports LAN : 1 x 10/100Mb LAN 1 + PoE passif, 1 x 10/100Mb LAN 2
Alimentation : PoE passif 12 V DC ou adaptateur secteur 12 V DC
Température de fonctionnement : -30 °C à 60 °C
Indice de protection : IP55 (résistant aux intempéries)
Consommation maximale : 5 W
