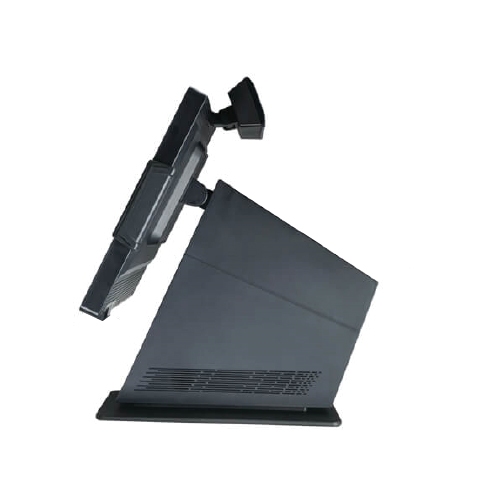

ZKBio830
| Processor | Intel® Celeron Intel Core i5 4200U(1.6 GHz) |
| System Memory | 4GB Standard, DDR3L 1333MHz |
| Storage Device | HDD 500Gb SATA |
| OS Supported | Windows 7, Windows 8, Windows 10 IoT Enterprise, POS Ready 7, Linux |
| Audio | Realtek ALC662 |
Display and Touch
| Types | 15”TFT LCD, LED Backlight |
| Resolution | 1024*768 |
| Touch Screen | Five-wire analog resistive or projected capacitive |
| Customer Display | LED (8C digital tube) |
External I/O Ports
| VGA | 1*DB-15 |
| USB | 5*USB2.0, 1*USB3.0 |
| COM | 5 |
| LAN | 1*RJ45 |
| Audio | 1*line-out |
| Cash Drawer | 1 |
Power
| Power Supply | Adaptor 12V DC 5A |
Physical Environmental
| Operating Temperature | 0°C °C at 20%-80% humidity |
| Storage Temperature | – 20°C °C at 20%-80% humidity |
| Dimensions (L*W*H) | 347*372*402mm |
| Packing Dimensions | 450*420*480mm |
| Net Weight | 6.10kg |
| Packing Weight | 8.21kg |
| CE FCC |
Options & Peripherals
| Second Display | 10”&15” TFT LCD |
| Customer Display (VFD) | VFD (2*20 lines) |
| MSR | 3 tracks |
| Fingerprint | Built-in fingerprint reader |
